#include <include/EST_FMatrix.h>

Inheritance diagram for EST_FMatrix:

[legend]

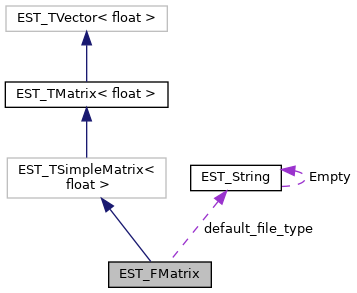

Collaboration diagram for EST_FMatrix:

[legend]

Public Member Functions
	EST_FMatrix (int m, int n)
	size constructor More...

	EST_FMatrix (const EST_FMatrix &a)
	copy constructor More...

	EST_FMatrix (const EST_FMatrix &a, int b)
	CHECK - what does this do??? More...

	EST_FMatrix ()
	default constructor More...

EST_write_status	save (const EST_String &filename, const EST_String &type=EST_FMatrix::default_file_type)
	Save in file (ascii or binary) More...

EST_read_status	load (const EST_String &filename)
	Load from file (ascii or binary as defined in file) More...

EST_write_status	est_save (const EST_String &filename, const EST_String &type)
	Save in file in est format. More...

EST_read_status	est_load (const EST_String &filename)
	Load from file in est format (binary/ascii defined in file itself) More...

void	copyin (float **x, int rows, int cols)
	Copy 2-d array {\tt x} of size {\tt rows x cols} into matrix. More...

EST_FMatrix &	operator+= (const EST_FMatrix &a)
	Add elements of 2 same sized matrices. More...

EST_FMatrix &	operator-= (const EST_FMatrix &a)
	Subtract elements of 2 same sized matrices. More...

EST_FMatrix &	operator*= (const float f)
	elementwise multiply by scalar More...

EST_FMatrix &	operator/= (const float f)
	elementwise divide by scalar More...

Public Member Functions inherited from EST_TSimpleMatrix< float >
	EST_TSimpleMatrix (void)
	default constructor More...

	EST_TSimpleMatrix (int m, int n)
	size constructor More...

	EST_TSimpleMatrix (const EST_TSimpleMatrix< float > &m)
	copy constructor More...

void	copy (const EST_TSimpleMatrix< float > &a)
	copy one matrix into another More...

void	resize (int rows, int cols, int set=1)
	resize matrix More...

EST_TSimpleMatrix< float > &	operator= (const EST_TSimpleMatrix< float > &s)
	assignment operator More...

Public Member Functions inherited from EST_TMatrix< float >
	EST_TMatrix ()
	default constructor More...

	EST_TMatrix (const EST_TMatrix< float > &m)
	copy constructor More...

	EST_TMatrix (int rows, int cols)
	"size" constructor More...

	EST_TMatrix (int rows, int cols, float *memory, int offset=0, int free_when_destroyed=0)
	construct from memory supplied by caller More...

	~EST_TMatrix ()
	EST_TMatrix. More...

int	num_rows () const
	return number of rows More...

int	num_columns () const
	return number of columns More...

INLINE const float &	a_no_check (int row, int col) const
	const access with no bounds check, care recommend More...

INLINE float &	a_no_check (int row, int col)
	access with no bounds check, care recommend More...

INLINE const float &	a_no_check_1 (int row, int col) const

INLINE float &	a_no_check_1 (int row, int col)

const float &	a_check (int row, int col) const
	const element access function More...

float &	a_check (int row, int col)
	non-const element access function More...

const float &	a (int row, int col) const

float &	a (int row, int col)

const float &	operator() (int row, int col) const
	const element access operator More...

float &	operator() (int row, int col)
	non-const element access operator More...

bool	have_rows_before (int n) const

bool	have_columns_before (int n) const

void	resize (int rows, int cols, int set=1)

void	fill (const float &v)
	fill matrix with value v More...

void	fill ()

EST_TMatrix &	operator= (const EST_TMatrix &s)
	assignment operator More...

EST_TMatrix &	add_rows (const EST_TMatrix &s)
	The two versions of what might have been operator +=. More...

EST_TMatrix &	add_columns (const EST_TMatrix &s)

void	row (EST_TVector< float > &rv, int r, int start_c=0, int len=-1)
	Make the vector {\tt rv} a window onto row {\tt r}. More...

void	column (EST_TVector< float > &cv, int c, int start_r=0, int len=-1)
	Make the vector {\tt cv} a window onto column {\tt c}. More...

void	sub_matrix (EST_TMatrix< float > &sm, int r=0, int numr=EST_ALL, int c=0, int numc=EST_ALL)
	Make the matrix {\tt sm} a window into this matrix. More...

void	copy_row (int r, float *buf, int offset=0, int num=-1) const

void	copy_row (int r, EST_TVector< float > &t, int offset=0, int num=-1) const

void	copy_column (int c, float *buf, int offset=0, int num=-1) const

void	copy_column (int c, EST_TVector< float > &t, int offset=0, int num=-1) const

void	set_row (int n, const float *buf, int offset=0, int num=-1)

void	set_row (int n, const EST_TVector< float > &t, int offset=0, int num=-1)

void	set_row (int r, const EST_TMatrix< float > &from, int from_r, int from_offset=0, int offset=0, int num=-1)

void	set_column (int n, const float *buf, int offset=0, int num=-1)

void	set_column (int n, const EST_TVector< float > &t, int offset=0, int num=-1)

void	set_column (int c, const EST_TMatrix< float > &from, int from_c, int from_offset=0, int offset=0, int num=-1)

void	set_memory (float *buffer, int offset, int rows, int columns, int free_when_destroyed=0)

EST_read_status	load (const class EST_String &filename)
	load Matrix from file - Not currently implemented. More...

EST_write_status	save (const class EST_String &filename) const
	save Matrix to file {\tt filename} More...

Public Member Functions inherited from EST_TVector< float >
const EST_DMatrix *	def_val

const EST_DVector *	def_val

const EST_FMatrix *	def_val

EST_DMatrix *	error_return

EST_DVector *	error_return

EST_FMatrix *	error_return

INLINE unsigned int	vcell_pos (unsigned int c, unsigned int cs) const
	The memory access rule, in one place for easy reference. More...

INLINE unsigned int	vcell_pos (unsigned int c) const

INLINE unsigned int	vcell_pos_1 (unsigned int c) const

INLINE const float &	fast_a_v (int c) const
	quick method for returning (x[n]) More...

INLINE float &	fast_a_v (int c)

INLINE const float &	fast_a_1 (int c) const

INLINE float &	fast_a_1 (int c)

void	set_values (const float *data, int step, int start_c, int num_c)
	Get and set values from array. More...

void	get_values (float *data, int step, int start_c, int num_c) const

void	copy (const EST_TVector< float > &a)
	private copy function, called from all other copying functions. More...

void	copy_data (const EST_TVector< float > &a)
	just copy data, no resizing, no size check. More...

void	just_resize (int new_cols, float **old_vals)
	resize the memory and reset the bounds, but don't set values. More...

void	default_vals ()
	sets data and length to default values (0 in both cases). More...

	EST_TVector ()
	default constructor More...

	EST_TVector (const EST_TVector< float > &v)
	copy constructor More...

	EST_TVector (int n)
	"size" constructor - make vector of size n. More...

	EST_TVector (int, float *memory, int offset=0, int free_when_destroyed=0)
	construct from memory supplied by caller More...

	~EST_TVector ()
	destructor. More...

void	resize (int n, int set=1)

const float *	memory () const

float *	memory ()

INLINE int	num_columns () const
	number of items in vector. More...

INLINE int	length () const
	number of items in vector. More...

INLINE int	n () const
	number of items in vector. More...

INLINE const float &	a_no_check (int n) const
	read-only const access operator: without bounds checking More...

INLINE float &	a_no_check (int n)
	read/write non-const access operator: without bounds checking More...

INLINE const float &	a_no_check_1 (int n) const
	read-only const access operator: without bounds checking More...

INLINE float &	a_no_check_1 (int n)
	read/write non-const access operator: without bounds checking More...

const float &	a_check (int n) const
	read-only const access operator: with bounds checking More...

float &	a_check (int n)
	read/write non-const access operator: with bounds checking More...

const float &	a (int n) const

float &	a (int n)

const float &	operator() (int n) const
	read-only const access operator: return reference to nth member More...

float &	operator[] (int n)
	read/write non const access operator: return reference to nth member More...

void	set_memory (float *buffer, int offset, int columns, int free_when_destroyed=0)

EST_TVector &	operator= (const EST_TVector &s)
	assignment operator More...

void	fill (const float &v)
	Fill entire array will value <parameter>v</parameter>. More...

void	empty ()
	Fill vector with default value. More...

int	operator== (const EST_TVector &v) const
	is true if vectors are equal size and all elements are equal. More...

int	operator!= (const EST_TVector &v) const
	is true if vectors are not equal size or a single elements isn't equal. More...

void	copy_section (float *dest, int offset=0, int num=-1) const
	Copy data in and out. Subclassed by SimpleVector for speed. More...

void	set_section (const float *src, int offset=0, int num=-1)

void	sub_vector (EST_TVector< float > &sv, int start_c=0, int len=-1)
	Create a sub vector. More...

void	integrity () const

Static Public Attributes
static EST_String	default_file_type = "est_ascii"

Static Public Attributes inherited from EST_TVector< float >
static const float *	def_val
	default value, used for filling matrix after resizing More...

static float *	error_return

Friends
EST_FMatrix	operator* (const EST_FMatrix &a, const float x)
	Multiply all elements of matrix by {\tt x}. More...

EST_FVector	operator* (const EST_FMatrix &a, const EST_FVector &v)
	Multiply matrix by vector. More...

EST_FVector	operator* (const EST_FVector &v, const EST_FMatrix &a)
	Multiply vector by matrix. More...

EST_FMatrix	operator* (const EST_FMatrix &a, const EST_FMatrix &b)
	Multiply matrix by matrix. More...

Additional Inherited Members
Public Attributes inherited from EST_TVector< float >
float *	p_memory

unsigned int	p_num_columns
	Visible shape. More...

unsigned int	p_offset
	How to access the memory. More...

unsigned int	p_column_step

bool	p_sub_matrix

Protected Member Functions inherited from EST_TSimpleMatrix< float >
void	copy_data (const EST_TSimpleMatrix< float > &a)

Protected Member Functions inherited from EST_TMatrix< float >
INLINE unsigned int	mcell_pos (int r, int c, int rs, int cs) const

INLINE unsigned int	mcell_pos (int r, int c) const

INLINE unsigned int	mcell_pos_1 (int r, int c) const

INLINE const float &	fast_a_m (int r, int c) const
	quick method for returning {\tt x[m][n]} More...

INLINE float &	fast_a_m (int r, int c)

INLINE const float &	fast_a_1 (int r, int c) const

INLINE float &	fast_a_1 (int r, int c)

void	set_values (const float *data, int r_step, int c_step, int start_r, int num_r, int start_c, int num_c)
	Get and set values from array. More...

void	get_values (float *data, int r_step, int c_step, int start_r, int num_r, int start_c, int num_c) const

void	copy (const EST_TMatrix< float > &a)
	private resize and copy function. More...

void	copy_data (const EST_TMatrix< float > &a)
	just copy data, no resizing, no size check. More...

void	just_resize (int new_rows, int new_cols, float **old_vals)
	resize the memory and reset the bounds, but don't set values. More...

void	default_vals ()
	sets data and length to default values (0 in both cases). More...

Protected Attributes inherited from EST_TMatrix< float >
unsigned int	p_num_rows
	Visible shape. More...

unsigned int	p_row_step
	How to access the memory. More...

Detailed Description

A matrix class for floating point numbers. EST_FMatrix x should be used instead of float **x wherever possible.

Definition at line 56 of file EST_FMatrix.h.

Constructor & Destructor Documentation

◆ EST_FMatrix() [1/4]

EST_FMatrix::EST_FMatrix	(	int	m,
		int	n
	)

inline

size constructor

Definition at line 60 of file EST_FMatrix.h.

◆ EST_FMatrix() [2/4]

EST_FMatrix::EST_FMatrix ( const EST_FMatrix & a )

inline

copy constructor

Definition at line 62 of file EST_FMatrix.h.

◆ EST_FMatrix() [3/4]

EST_FMatrix::EST_FMatrix	(	const EST_FMatrix &	a,
		int	b
	)

CHECK - what does this do???

Definition at line 64 of file EST_FMatrix.cc.

◆ EST_FMatrix() [4/4]

EST_FMatrix::EST_FMatrix ( )

inline

default constructor

Definition at line 68 of file EST_FMatrix.h.

Member Function Documentation

◆ save()

EST_write_status EST_FMatrix::save	(	const EST_String &	filename,
		const EST_String &	type = `EST_FMatrix::default_file_type`
	)

Save in file (ascii or binary)

Definition at line 340 of file EST_FMatrix.cc.

◆ load()

EST_read_status EST_FMatrix::load ( const EST_String & filename )

Load from file (ascii or binary as defined in file)

Definition at line 513 of file EST_FMatrix.cc.

◆ est_save()

EST_write_status EST_FMatrix::est_save	(	const EST_String &	filename,
		const EST_String &	type
	)

Save in file in est format.

Definition at line 376 of file EST_FMatrix.cc.

◆ est_load()

EST_read_status EST_FMatrix::est_load ( const EST_String & filename )

Load from file in est format (binary/ascii defined in file itself)

Definition at line 437 of file EST_FMatrix.cc.

◆ copyin()

void EST_FMatrix::copyin	(	float **	x,
		int	rows,
		int	cols
	)

Copy 2-d array {\tt x} of size {\tt rows x cols} into matrix.

Definition at line 328 of file EST_FMatrix.cc.

◆ operator+=()

EST_FMatrix & EST_FMatrix::operator+= ( const EST_FMatrix & a )

Add elements of 2 same sized matrices.

Definition at line 74 of file EST_FMatrix.cc.

◆ operator-=()

EST_FMatrix & EST_FMatrix::operator-= ( const EST_FMatrix & a )

Subtract elements of 2 same sized matrices.

Definition at line 94 of file EST_FMatrix.cc.

◆ operator*=()

EST_FMatrix & EST_FMatrix::operator*= ( const float f )

elementwise multiply by scalar

Definition at line 114 of file EST_FMatrix.cc.

◆ operator/=()

EST_FMatrix & EST_FMatrix::operator/= ( const float f )

elementwise divide by scalar

Definition at line 125 of file EST_FMatrix.cc.

Friends And Related Function Documentation

◆ operator* [1/4]

EST_FMatrix operator*	(	const EST_FMatrix &	a,
		const float	x
	)

friend

Multiply all elements of matrix by {\tt x}.

Definition at line 182 of file EST_FMatrix.cc.

◆ operator* [2/4]

EST_FVector operator*	(	const EST_FMatrix &	a,
		const EST_FVector &	v
	)

friend

Multiply matrix by vector.

Definition at line 207 of file EST_FMatrix.cc.

◆ operator* [3/4]

EST_FVector operator*	(	const EST_FVector &	v,
		const EST_FMatrix &	a
	)

friend

Multiply vector by matrix.

Definition at line 266 of file EST_FMatrix.cc.

◆ operator* [4/4]

EST_FMatrix operator*	(	const EST_FMatrix &	a,
		const EST_FMatrix &	b
	)

friend

Multiply matrix by matrix.

Definition at line 298 of file EST_FMatrix.cc.

Member Data Documentation

◆ default_file_type

EST_String EST_FMatrix::default_file_type = "est_ascii"

static

Definition at line 64 of file EST_FMatrix.h.

The documentation for this class was generated from the following files:

include/EST_FMatrix.h
base_class/EST_FMatrix.cc

Public Member Functions

Static Public Attributes

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ EST_FMatrix() [1/4]

◆ EST_FMatrix() [2/4]

◆ EST_FMatrix() [3/4]

◆ EST_FMatrix() [4/4]

Member Function Documentation

◆ save()

◆ load()

◆ est_save()

◆ est_load()

◆ copyin()

◆ operator+=()

◆ operator-=()

◆ operator*=()

◆ operator/=()

Friends And Related Function Documentation

◆ operator* [1/4]

◆ operator* [2/4]

◆ operator* [3/4]

◆ operator* [4/4]

Member Data Documentation

◆ default_file_type
