pandas.Series.hist

Series.hist(by=None, ax=None, grid=True, xlabelsize=None, xrot=None, ylabelsize=None, yrot=None, figsize=None, bins=10, backend=None, legend=False, **kwargs)[source]

Draw histogram of the input series using matplotlib.

Parameters:
byobject, optional

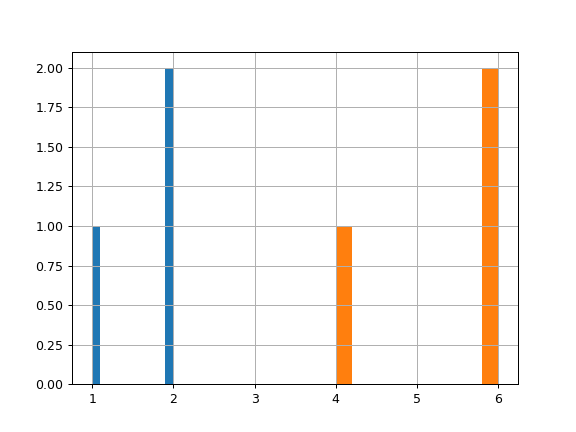

If passed, then used to form histograms for separate groups.

axmatplotlib axis object

If not passed, uses gca().

gridbool, default True

Whether to show axis grid lines.

xlabelsizeint, default None

If specified changes the x-axis label size.

xrotfloat, default None

Rotation of x axis labels.

ylabelsizeint, default None

If specified changes the y-axis label size.

yrotfloat, default None

Rotation of y axis labels.

figsizetuple, default None

Figure size in inches by default.

binsint or sequence, default 10

Number of histogram bins to be used. If an integer is given, bins + 1 bin edges are calculated and returned. If bins is a sequence, gives bin edges, including left edge of first bin and right edge of last bin. In this case, bins is returned unmodified.

backendstr, default None

Backend to use instead of the backend specified in the option plotting.backend. For instance, ‘matplotlib’. Alternatively, to specify the plotting.backend for the whole session, set pd.options.plotting.backend.

New in version 1.0.0.

legendbool, default False

Whether to show the legend.

New in version 1.1.0.

**kwargs

To be passed to the actual plotting function.

Returns:
matplotlib.AxesSubplot

A histogram plot.

See also

matplotlib.axes.Axes.hist

Plot a histogram using matplotlib.
