Dune::TensorGridFactory< Grid > Class Template Reference

A factory class for conveniently creating tensorproduct grids. More...

#include <dune/grid/utility/tensorgridfactory.hh>

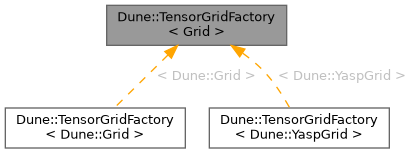

Inheritance diagram for Dune::TensorGridFactory< Grid >:
Inheritance graph

Public Types

typedef Grid::Traits::Communication Comm

typedef Grid::ctype ctype


Public Member Functions

std::unique_ptr< Grid > createGrid (Comm comm=Comm())

std::array< std::vector< ctype >, dim > coords () const

std::vector< ctype > & operator[] (std::size_t d)
 allow to manually tune the factory by overloading operator[] to export the coordinate vectors in the coordinate directories.

const std::vector< ctype > & operator[] (std::size_t d) const
 allow to manually tune the factory by overloading operator[] to export the coordinate vectors in the coordinate directories.

void setStart (int d, ctype value)
 set a starting value in a given direction d

void fillIntervals (int d, int n, ctype h)
 pushs n intervals of length h in direction d

void fillRange (int d, int n, ctype end)
 fills the range to end with n intervals in direction d

void fillUntil (int d, ctype h, ctype end)
 adds intervals in direction d until a given coordinate is reached

void geometricFillIntervals (int d, int n, ctype ratio, ctype h0=static_cast< ctype >(0))
 adds n intervals in direction d with a given length ratio and a given starting interval length.

void geometricFillUntil (int d, ctype ratio, ctype end, ctype h0=static_cast< ctype >(0))
 adds intervals in direction d according with a given length ratio until a given coordinate is reached

void geometricFillRange (int d, int n, ctype end, ctype h=static_cast< ctype >(0), bool first=true)
 fills a coordinate range in direction d with n intervals according to a geometric series

void print ()
 print the coordinate information given to the factory so far


Static Public Attributes

static const int dim = Grid::dimension


Detailed Description

template<typename Grid>
class Dune::TensorGridFactory< Grid >

A factory class for conveniently creating tensorproduct grids.

Template Parameters
Gridthe grid type

Member Typedef Documentation

◆ Comm

template<typename Grid >
typedef Grid::Traits::Communication Dune::TensorGridFactory< Grid >::Comm

◆ ctype

template<typename Grid >
typedef Grid::ctype Dune::TensorGridFactory< Grid >::ctype

Member Function Documentation

◆ coords()

template<typename Grid >
std::array< std::vector< ctype >, dim > Dune::TensorGridFactory< Grid >::coords ( ) const
inline

◆ createGrid()

template<typename Grid >
std::unique_ptr< Grid > Dune::TensorGridFactory< Grid >::createGrid ( Comm  comm = Comm())
inline

◆ fillIntervals()

template<typename Grid >
void Dune::TensorGridFactory< Grid >::fillIntervals ( int  d,
int  n,
ctype  h
)
inline

pushs n intervals of length h in direction d

Parameters
dthe coordinate direction
nthe number of intervals to add
hthe interval length

Given a vector with last element $x_0$, this will add elements $x_1,\dots ,x_n$ such that $x_i=x_0+i*h$.

◆ fillRange()

template<typename Grid >
void Dune::TensorGridFactory< Grid >::fillRange ( int  d,
int  n,
ctype  end
)
inline

fills the range to end with n intervals in direction d

Parameters
dthe coordinate direction
nthe number of intervals to add
endthe coordinate on the upper border of the range

Given a vector with last element $x_0$, this will add elements $x_1,\dots ,x_n$ such that $x_i=x_0+i*\frac{end-x_0}{n}$.

◆ fillUntil()

template<typename Grid >
void Dune::TensorGridFactory< Grid >::fillUntil ( int  d,
ctype  h,
ctype  end
)
inline

adds intervals in direction d until a given coordinate is reached

Parameters
dthe coordinate direction
hthe interval length
endthe coordinate on the upper border of the range

Given a vector with last element $x_0$, this will add elements $x_1,\dots ,x_n$ such that $x_n < end < x_n + h$ and $x_{i+1}-x_i = h$.

◆ geometricFillIntervals()

template<typename Grid >
void Dune::TensorGridFactory< Grid >::geometricFillIntervals ( int  d,
int  n,
ctype  ratio,
ctype  h0 = static_cast<ctype> (0)
)
inline

adds n intervals in direction d with a given length ratio and a given starting interval length.

Parameters
dthe coordinate direction
nthe number of intervals to add
ratiothe ratio of $ h_{i+1}$ to $h_i$
h0the starting interval length (optional)

Given a vector with last element $x_0$, this will add elements $x_1,\dots ,x_n$ such that $h_{i+1}=qh_i$ for a given ratio $q$ and interval length $h_i=x_{i+1}-x_i$. The first interval length can either be explicitly given or be deduced by multiplying the ratio with the last interval length in the container.

◆ geometricFillRange()

template<typename Grid >
void Dune::TensorGridFactory< Grid >::geometricFillRange ( int  d,
int  n,
ctype  end,
ctype  h = static_cast<ctype> (0),
bool  first = true
)
inline

fills a coordinate range in direction d with n intervals according to a geometric series

Parameters
dthe coordinate direction
nthe number of intervals to add
endthe coordinate of the upper border of the range
hthe interval length to start or end with (see below) (optional)
firsttrue if the given h is to be the first interval, false if last one

Given a vector with last element $x_0$, this will add elements $x_1,\dots ,x_n$ such that the ratio $h_{i+1} / h_i$ is fixed throughout the range and $x_n=end$, while $h_i=x_{i+1}-x_i$ is the interval length. The first interval length can either be explicitly given or be deduced by taking the last interval length in the container. By setting the optional parameter first to false, the given h can instead be used as last interval length in the range.

◆ geometricFillUntil()

template<typename Grid >
void Dune::TensorGridFactory< Grid >::geometricFillUntil ( int  d,
ctype  ratio,
ctype  end,
ctype  h0 = static_cast<ctype> (0)
)
inline

adds intervals in direction d according with a given length ratio until a given coordinate is reached

Parameters
dthe coordinate direction
ratiothe ratio of $h_{i+1}$ to $h_i$
endthe coordinate on the right border of the range
h0the starting interval length (optional)

Given a vector with last element $x_0$, this will add elements $x_1,\dots ,x_n$ such that - with $h_i=x_{i+1}-x_i$ - $h_{i+1}=qh_i$ for a given ratio $q$ and that $x_n < end < x_n + h$. The first interval length can either be explicitly given or be deduced by multiplying the ratio with the last interval length in the container.

◆ operator[]() [1/2]

template<typename Grid >
std::vector< ctype > & Dune::TensorGridFactory< Grid >::operator[] ( std::size_t  d)
inline

allow to manually tune the factory by overloading operator[] to export the coordinate vectors in the coordinate directories.

◆ operator[]() [2/2]

template<typename Grid >
const std::vector< ctype > & Dune::TensorGridFactory< Grid >::operator[] ( std::size_t  d) const
inline

allow to manually tune the factory by overloading operator[] to export the coordinate vectors in the coordinate directories.

◆ print()

template<typename Grid >
void Dune::TensorGridFactory< Grid >::print ( )
inline

print the coordinate information given to the factory so far

◆ setStart()

template<typename Grid >
void Dune::TensorGridFactory< Grid >::setStart ( int  d,
ctype  value
)
inline

set a starting value in a given direction d

Parameters
dthe coordinate direction
valuethe value to set

This resizes the coordinate vector for the given direction to 1. Not using this function will result in 0.0 to be used as a lower bound of the coordinate range.

Member Data Documentation

◆ dim

template<typename Grid >
const int Dune::TensorGridFactory< Grid >::dim = Grid::dimension
static
The documentation for this class was generated from the following file:
