Dune::OneDGrid Class Reference

One-dimensional adaptive grid. More...

#include <dune/grid/onedgrid.hh>

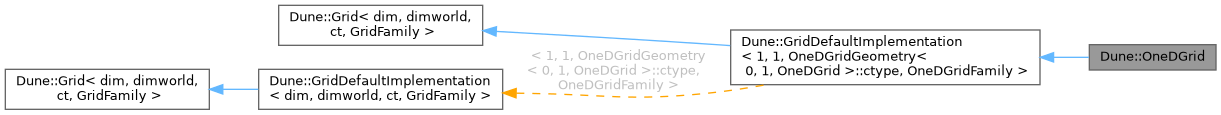

Inheritance diagram for Dune::OneDGrid:

Public Types
enum	RefinementType { LOCAL , COPY }
	The different forms of grid refinement supported by OneDGrid. More...
typedef OneDGridGeometry< 0, 1, OneDGrid >::ctype	ctype
	The type used to store coordinates.
typedef OneDGridFamily	GridFamily
	GridFamily of OneDGrid.
typedef OneDGridFamily::Traits	Traits
Exported types
typedef GridFamily::Traits::LeafGridView	LeafGridView
	type of view for leaf grid
typedef GridFamily::Traits::LevelGridView	LevelGridView
	type of view for level grid
typedef GridFamily::Traits::LeafIntersection	LeafIntersection
	A type that is a model of Dune::Intersection, an intersections of two codimension 1 of two codimension 0 entities in the leaf view.
typedef GridFamily::Traits::LevelIntersection	LevelIntersection
	A type that is a model of Dune::Intersection, an intersections of two codimension 1 of two codimension 0 entities in a level view.
typedef GridFamily::Traits::LeafIntersectionIterator	LeafIntersectionIterator
	A type that is a model of Dune::IntersectionIterator which is an iterator that allows to examine, but not to modify, the intersections of codimension 1 of an leaf element (entity of codimension 0) with other leaf elements.
typedef GridFamily::Traits::LevelIntersectionIterator	LevelIntersectionIterator
	A type that is a model of Dune::IntersectionIterator which is an iterator that allows to examine, but not to modify, the intersections of codimension 1 of an element (entity of codimension 0) with other elements on the same level.
typedef GridFamily::Traits::HierarchicIterator	HierarchicIterator
	A type that is a model of Dune::HierarchicIterator A type of iterator that allows to examine, but not to modify, entities of codimension 0 that result from refinement of an entity of codimension 0.
typedef GridFamily::Traits::LevelIndexSet	LevelIndexSet
	A type that is a model of Dune::IndexSet which provides a consecutive, but non persistent, numbering for entities on a grid level.
typedef GridFamily::Traits::LeafIndexSet	LeafIndexSet
	A type that is a model of Dune::IndexSet which provides a consecutive, but non persistent, numbering for entities in the leaf grid.
typedef GridFamily::Traits::GlobalIdSet	GlobalIdSet
	A type that is a model of Dune::IdSet which provides a unique and persistent numbering for all entities in the grid. The numbering is unique over all processes over which the grid is partitioned. The numbering is not necessarily consecutive.
typedef GridFamily::Traits::LocalIdSet	LocalIdSet
	A type that is a model of Dune::IdSet which provides a unique and persistent numbering for all entities in the grid. The numbering is only unique in a single process and it is not necessarily consecutive.
using	Communication = typename GridFamily::Traits::Communication
	A type that is a model of Dune::Communication. It provides a portable way for communication on the set of processes used by the grid.

Public Member Functions
	OneDGrid (const std::vector< ctype > &coords)
	Constructor with an explicit set of coordinates.
	OneDGrid (int numElements, const ctype &leftBoundary, const ctype &rightBoundary)
	Constructor for a uniform grid.
	~OneDGrid ()
	Destructor.
int	maxLevel () const
	Return maximum level defined in this grid.
int	size (int level, int codim) const
	Number of grid entities per level and codim.
int	size (int codim) const
	number of leaf entities per codim in this process
int	size (int level, GeometryType type) const
	number of entities per level and geometry type in this process
int	size (GeometryType type) const
	number of leaf entities per geometry type in this process
size_t	numBoundarySegments () const
	Return the number of coarse grid boundary segments.
const Traits::GlobalIdSet &	globalIdSet () const
	Get the set of global ids.
const Traits::LocalIdSet &	localIdSet () const
	Get the set of local ids.
const Traits::LevelIndexSet &	levelIndexSet (int level) const
	Get an index set for the given level.
const Traits::LeafIndexSet &	leafIndexSet () const
	Get an index set for the leaf level.
bool	mark (int refCount, const Traits::Codim< 0 >::Entity &e)
	Mark entity for refinement.
int	getMark (const Traits::Codim< 0 >::Entity &e) const
	return current adaptation marker of given entity
bool	preAdapt ()
	Does nothing except return true if some element has been marked for refinement.
bool	adapt ()
	Triggers the grid refinement process.
void	postAdapt ()
	Adaptation post-processing: Reset all adaptation state flags.
void	setRefinementType (RefinementType type)
	Sets the type of grid refinement.
void	globalRefine (int refCount)
	Does one uniform refinement step.
const Communication &	comm () const
template<class DataHandle >
void	communicate (DataHandle &, InterfaceType, CommunicationDirection, int) const
	Communicate data of level gridView.
template<class DataHandle >
void	communicate (DataHandle &, InterfaceType, CommunicationDirection) const
	Communicate data of leaf gridView.
Traits::LevelGridView	levelGridView (int level) const
	View for a grid level for All_Partition.
Traits::LeafGridView	leafGridView () const
	View for the leaf grid for All_Partition.
Traits::LeafIntersectionIterator	ileafbegin (const typename Traits::template Codim< 0 >::Entity &entity) const
	obtain begin intersection iterator on the leaf level
Traits::LeafIntersectionIterator	ileafend (const typename Traits::template Codim< 0 >::Entity &entity) const
	obtain end intersection iterator on the leaf level
Traits::LevelIntersectionIterator	ilevelbegin (const typename Traits::template Codim< 0 >::Entity &entity) const
	obtain begin intersection iterator on the entity level
Traits::LevelIntersectionIterator	ilevelend (const typename Traits::template Codim< 0 >::Entity &entity) const
	obtain end intersection iterator on the entity level
bool	mark (int refCount, const typename Traits ::template Codim< 0 >::Entity &e)
	Marks an entity to be refined/coarsened in a subsequent adapt.
int	getMark (const typename Traits::template Codim< 0 >::Entity &e) const
	returns adaptation mark for given entity, i.e. here the default implementation returns 0.
bool	loadBalance ()
	default implementation of load balance does nothing and returns false
bool	loadBalance (DataHandle &data)
	default implementation of load balance does nothing and returns false
Adaptivity and grid refinement
bool	mark (int refCount, const typename Codim< 0 >::Entity &e)
	Marks an entity to be refined/coarsened in a subsequent adapt.
int	getMark (const typename Codim< 0 >::Entity &e) const
	returns adaptation mark for given entity

Static Public Member Functions
template<typename Seed >
static Traits::template Codim< Seed::codimension >::Entity	entity (const Seed &seed)
	Create an Entity from an EntitySeed.

Static Public Attributes
Exported constants
static constexpr int	dimension = dim
	The dimension of the grid.
static constexpr int	dimensionworld = dimworld
	The dimension of the world the grid lives in.

Parallel data distribution and communication
template<class EntitySeed >
Codim< EntitySeed::codimension >::Entity	entity (const EntitySeed &seed) const
	obtain Entity from EntitySeed.
GridImp &	asImp ()
	Barton-Nackman trick.
const GridImp &	asImp () const
	Barton-Nackman trick.

Detailed Description

One-dimensional adaptive grid.

[ provides Dune::Grid ]

This implementation of the grid interface provides one-dimensional grids only. The OneDGrid can be nonuniform and provides local mesh refinement and coarsening.

Member Typedef Documentation

Communication

template<int dim, int dimworld, class ct , class GridFamily >

using Dune::Grid< dim, dimworld, ct, GridFamily >::Communication = typename GridFamily::Traits::Communication

inherited

A type that is a model of Dune::Communication. It provides a portable way for communication on the set of processes used by the grid.

ctype

typedef OneDGridGeometry<0,1,OneDGrid>::ctype Dune::OneDGrid::ctype

The type used to store coordinates.

GlobalIdSet

template<int dim, int dimworld, class ct , class GridFamily >

typedef GridFamily::Traits::GlobalIdSet Dune::Grid< dim, dimworld, ct, GridFamily >::GlobalIdSet

inherited

A type that is a model of Dune::IdSet which provides a unique and persistent numbering for all entities in the grid. The numbering is unique over all processes over which the grid is partitioned. The numbering is not necessarily consecutive.

GridFamily

typedef OneDGridFamily Dune::OneDGrid::GridFamily

GridFamily of OneDGrid.

HierarchicIterator

template<int dim, int dimworld, class ct , class GridFamily >

typedef GridFamily::Traits::HierarchicIterator Dune::Grid< dim, dimworld, ct, GridFamily >::HierarchicIterator

inherited

A type that is a model of Dune::HierarchicIterator A type of iterator that allows to examine, but not to modify, entities of codimension 0 that result from refinement of an entity of codimension 0.

LeafGridView

template<int dim, int dimworld, class ct , class GridFamily >

typedef GridFamily::Traits::LeafGridView Dune::Grid< dim, dimworld, ct, GridFamily >::LeafGridView

inherited

type of view for leaf grid

LeafIndexSet

template<int dim, int dimworld, class ct , class GridFamily >

typedef GridFamily::Traits::LeafIndexSet Dune::Grid< dim, dimworld, ct, GridFamily >::LeafIndexSet

inherited

A type that is a model of Dune::IndexSet which provides a consecutive, but non persistent, numbering for entities in the leaf grid.

LeafIntersection

template<int dim, int dimworld, class ct , class GridFamily >

typedef GridFamily::Traits::LeafIntersection Dune::Grid< dim, dimworld, ct, GridFamily >::LeafIntersection

inherited

A type that is a model of Dune::Intersection, an intersections of two codimension 1 of two codimension 0 entities in the leaf view.

LeafIntersectionIterator

template<int dim, int dimworld, class ct , class GridFamily >

typedef GridFamily::Traits::LeafIntersectionIterator Dune::Grid< dim, dimworld, ct, GridFamily >::LeafIntersectionIterator

inherited

A type that is a model of Dune::IntersectionIterator which is an iterator that allows to examine, but not to modify, the intersections of codimension 1 of an leaf element (entity of codimension 0) with other leaf elements.

LevelGridView

template<int dim, int dimworld, class ct , class GridFamily >

typedef GridFamily::Traits::LevelGridView Dune::Grid< dim, dimworld, ct, GridFamily >::LevelGridView

inherited

type of view for level grid

LevelIndexSet

template<int dim, int dimworld, class ct , class GridFamily >

typedef GridFamily::Traits::LevelIndexSet Dune::Grid< dim, dimworld, ct, GridFamily >::LevelIndexSet

inherited

A type that is a model of Dune::IndexSet which provides a consecutive, but non persistent, numbering for entities on a grid level.

LevelIntersection

template<int dim, int dimworld, class ct , class GridFamily >

typedef GridFamily::Traits::LevelIntersection Dune::Grid< dim, dimworld, ct, GridFamily >::LevelIntersection

inherited

A type that is a model of Dune::Intersection, an intersections of two codimension 1 of two codimension 0 entities in a level view.

LevelIntersectionIterator

template<int dim, int dimworld, class ct , class GridFamily >

typedef GridFamily::Traits::LevelIntersectionIterator Dune::Grid< dim, dimworld, ct, GridFamily >::LevelIntersectionIterator

inherited

A type that is a model of Dune::IntersectionIterator which is an iterator that allows to examine, but not to modify, the intersections of codimension 1 of an element (entity of codimension 0) with other elements on the same level.

LocalIdSet

template<int dim, int dimworld, class ct , class GridFamily >

typedef GridFamily::Traits::LocalIdSet Dune::Grid< dim, dimworld, ct, GridFamily >::LocalIdSet

inherited

A type that is a model of Dune::IdSet which provides a unique and persistent numbering for all entities in the grid. The numbering is only unique in a single process and it is not necessarily consecutive.

Traits

typedef OneDGridFamily::Traits Dune::OneDGrid::Traits

Member Enumeration Documentation

RefinementType

enum Dune::OneDGrid::RefinementType

The different forms of grid refinement supported by OneDGrid.

Enumerator
LOCAL	New level consists only of the refined elements.
COPY	New level consists of the refined elements and the unrefined ones, too.

Constructor & Destructor Documentation

OneDGrid() [1/2]

Dune::OneDGrid::OneDGrid

(

const std::vector< ctype > &

coords

)

Constructor with an explicit set of coordinates.

OneDGrid() [2/2]

Dune::OneDGrid::OneDGrid	(	int	numElements,
		const ctype &	leftBoundary,
		const ctype &	rightBoundary
	)

Constructor for a uniform grid.

~OneDGrid()

Dune::OneDGrid::~OneDGrid

(

)

Destructor.

Member Function Documentation

adapt()

bool Dune::OneDGrid::adapt

(

)

Triggers the grid refinement process.

asImp() [1/2]

template<int dim, int dimworld, class ct , class GridFamily >

GridImp & Dune::Grid< dim, dimworld, ct, GridFamily >::asImp ( )

inlineprotectedinherited

Barton-Nackman trick.

asImp() [2/2]

template<int dim, int dimworld, class ct , class GridFamily >

const GridImp & Dune::Grid< dim, dimworld, ct, GridFamily >::asImp ( ) const

inlineprotectedinherited

Barton-Nackman trick.

comm()

const Communication & Dune::OneDGrid::comm ( ) const

inline

communicate() [1/2]

template<class DataHandle >

void Dune::OneDGrid::communicate ( DataHandle &  , InterfaceType  , CommunicationDirection    ) const

inline

Communicate data of leaf gridView.

communicate() [2/2]

template<class DataHandle >

void Dune::OneDGrid::communicate ( DataHandle &  , InterfaceType  , CommunicationDirection  , int    ) const

inline

Communicate data of level gridView.

entity() [1/2]

template<int dim, int dimworld, class ct , class GridFamily >

template<class EntitySeed >

Codim< EntitySeed::codimension >::Entity Dune::Grid< dim, dimworld, ct, GridFamily >::entity ( const EntitySeed &  seed ) const

inlineinherited

obtain Entity from EntitySeed.

entity() [2/2]

template<typename Seed >

static Traits::template Codim< Seed::codimension >::Entity Dune::OneDGrid::entity ( const Seed &  seed )

inlinestatic

Create an Entity from an EntitySeed.

getMark() [1/3]

int Dune::OneDGrid::getMark

(

const Traits::Codim< 0 >::Entity &

e

)

const

return current adaptation marker of given entity

Parameters

e	Entity to the entity you want to mark

Returns

int current adaptation marker of entity pointer e

getMark() [2/3]

template<int dim, int dimworld, class ct , class GridFamily >

int Dune::Grid< dim, dimworld, ct, GridFamily >::getMark ( const typename Codim< 0 >::Entity &  e ) const

inlineinherited

returns adaptation mark for given entity

Parameters

[in]

e

Entity for which adaptation mark should be determined

Returns

int adaptation mark currently set for given Entity e

getMark() [3/3]

int Dune::GridDefaultImplementation< dim, dimworld, OneDGridGeometry< 0, 1, OneDGrid >::ctype , OneDGridFamily >::getMark ( const typename Traits::template Codim< 0 >::Entity &  e ) const

inlineinherited

returns adaptation mark for given entity, i.e. here the default implementation returns 0.

Parameters

[in]

e

Entity for which adaptation mark should be determined

Returns

int adaptation mark, here the default value 0 is returned

globalIdSet()

const Traits::GlobalIdSet & Dune::OneDGrid::globalIdSet ( ) const

inline

Get the set of global ids.

globalRefine()

void Dune::OneDGrid::globalRefine

(

int

refCount

)

Does one uniform refinement step.

Parameters

refCount

I don't know what this is good for. It doesn't actually do anything.

ileafbegin()

Traits::LeafIntersectionIterator Dune::GridDefaultImplementation< dim, dimworld, OneDGridGeometry< 0, 1, OneDGrid >::ctype , OneDGridFamily >::ileafbegin ( const typename Traits::template Codim< 0 >::Entity &  entity ) const

inlineinherited

obtain begin intersection iterator on the leaf level

ileafend()

Traits::LeafIntersectionIterator Dune::GridDefaultImplementation< dim, dimworld, OneDGridGeometry< 0, 1, OneDGrid >::ctype , OneDGridFamily >::ileafend ( const typename Traits::template Codim< 0 >::Entity &  entity ) const

inlineinherited

obtain end intersection iterator on the leaf level

ilevelbegin()

Traits::LevelIntersectionIterator Dune::GridDefaultImplementation< dim, dimworld, OneDGridGeometry< 0, 1, OneDGrid >::ctype , OneDGridFamily >::ilevelbegin ( const typename Traits::template Codim< 0 >::Entity &  entity ) const

inlineinherited

obtain begin intersection iterator on the entity level

ilevelend()

Traits::LevelIntersectionIterator Dune::GridDefaultImplementation< dim, dimworld, OneDGridGeometry< 0, 1, OneDGrid >::ctype , OneDGridFamily >::ilevelend ( const typename Traits::template Codim< 0 >::Entity &  entity ) const

inlineinherited

obtain end intersection iterator on the entity level

leafGridView()

Traits::LeafGridView Dune::GridDefaultImplementation< dim, dimworld, OneDGridGeometry< 0, 1, OneDGrid >::ctype , OneDGridFamily >::leafGridView ( ) const

inlineinherited

View for the leaf grid for All_Partition.

leafIndexSet()

const Traits::LeafIndexSet & Dune::OneDGrid::leafIndexSet ( ) const

inline

Get an index set for the leaf level.

levelGridView()

Traits::LevelGridView Dune::GridDefaultImplementation< dim, dimworld, OneDGridGeometry< 0, 1, OneDGrid >::ctype , OneDGridFamily >::levelGridView ( int  level ) const

inlineinherited

View for a grid level for All_Partition.

levelIndexSet()

const Traits::LevelIndexSet & Dune::OneDGrid::levelIndexSet ( int  level ) const

inline

Get an index set for the given level.

loadBalance() [1/2]

bool Dune::GridDefaultImplementation< dim, dimworld, OneDGridGeometry< 0, 1, OneDGrid >::ctype , OneDGridFamily >::loadBalance ( )

inlineinherited

default implementation of load balance does nothing and returns false

loadBalance() [2/2]

bool Dune::GridDefaultImplementation< dim, dimworld, OneDGridGeometry< 0, 1, OneDGrid >::ctype , OneDGridFamily >::loadBalance ( DataHandle &  data )

inlineinherited

default implementation of load balance does nothing and returns false

localIdSet()

const Traits::LocalIdSet & Dune::OneDGrid::localIdSet ( ) const

inline

Get the set of local ids.

mark() [1/3]

bool Dune::OneDGrid::mark	(	int	refCount,
		const Traits::Codim< 0 >::Entity &	e
	)

Mark entity for refinement.

Parameters

refCount	if >0 mark for refinement, if <0 mark for coarsening
e	Entity to the entity you want to mark

Returns

True, if marking was successful

mark() [2/3]

template<int dim, int dimworld, class ct , class GridFamily >

bool Dune::Grid< dim, dimworld, ct, GridFamily >::mark ( int  refCount, const typename Codim< 0 >::Entity &  e  )

inlineinherited

Marks an entity to be refined/coarsened in a subsequent adapt.

Parameters

[in]	refCount	Number of subdivisions that should be applied. Negative value means coarsening.
[in]	e	Entity that should be marked

Returns

true if Entity was marked, false otherwise.

mark() [3/3]

bool Dune::GridDefaultImplementation< dim, dimworld, OneDGridGeometry< 0, 1, OneDGrid >::ctype , OneDGridFamily >::mark ( int  refCount, const typename Traits ::template Codim< 0 >::Entity &  e  )

inlineinherited

Marks an entity to be refined/coarsened in a subsequent adapt.

Parameters

[in]	refCount	Number of subdivisions that should be applied. Negative value means coarsening.
[in]	e	Entity to Entity that should be refined

Returns

true if Entity was marked, false otherwise.

Note

• default implementation is: return false; for grids with no adaptation.
• for the grid programmer: this method is implemented as a template method, because the Entity type is not defined when the class is instantiated You won't need this trick in the implementation. In your implementation you should use it as

  bool mark( int refCount,
             typename Traits::template Codim<0>::Entity & e ).

  This template method will vanish due to the inheritance rules.

maxLevel()

int Dune::OneDGrid::maxLevel ( ) const

inline

Return maximum level defined in this grid.

Levels are numbered 0 ... maxlevel with 0 the coarsest level.

numBoundarySegments()

size_t Dune::OneDGrid::numBoundarySegments ( ) const

inline

Return the number of coarse grid boundary segments.

For this grid implementation, the return value is always 2, because only connected domains are supported, and then the coarse grid boundary consists of two points.

postAdapt()

void Dune::OneDGrid::postAdapt

(

)

Adaptation post-processing: Reset all adaptation state flags.

preAdapt()

bool Dune::OneDGrid::preAdapt

(

)

Does nothing except return true if some element has been marked for refinement.

setRefinementType()

void Dune::OneDGrid::setRefinementType ( RefinementType  type )

inline

Sets the type of grid refinement.

size() [1/4]

int Dune::OneDGrid::size ( GeometryType  type ) const

inline

number of leaf entities per geometry type in this process

size() [2/4]

int Dune::OneDGrid::size ( int  codim ) const

inline

number of leaf entities per codim in this process

size() [3/4]

int Dune::OneDGrid::size ( int  level, GeometryType  type  ) const

inline

number of entities per level and geometry type in this process

size() [4/4]

int Dune::OneDGrid::size ( int  level, int  codim  ) const

inline

Number of grid entities per level and codim.

Member Data Documentation

dimension

template<int dim, int dimworld, class ct , class GridFamily >

constexpr int Dune::Grid< dim, dimworld, ct, GridFamily >::dimension = dim

staticconstexprinherited

The dimension of the grid.

dimensionworld

template<int dim, int dimworld, class ct , class GridFamily >

constexpr int Dune::Grid< dim, dimworld, ct, GridFamily >::dimensionworld = dimworld

staticconstexprinherited

The dimension of the world the grid lives in.

---

The documentation for this class was generated from the following file:

• onedgrid.hh
