Dune::VTK::FunctionWriterBase< Cell_ > Class Template Reference

Base class for function writers. More...

#include <dune/grid/io/file/vtk/functionwriter.hh>

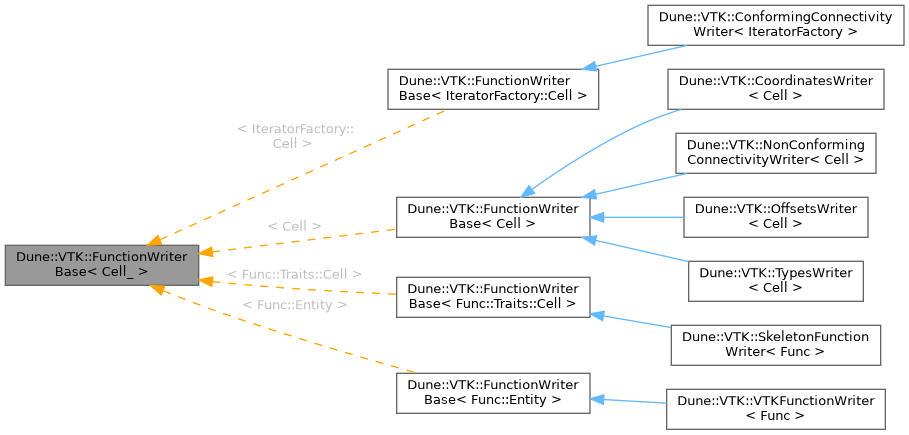

Inheritance diagram for Dune::VTK::FunctionWriterBase< Cell_ >:

Public Types
typedef FieldVector< DF, mydim >	Domain
typedef Cell_	Cell

Public Member Functions
virtual std::string	name () const =0
	return name
virtual unsigned	ncomps () const =0
	return number of components of the vector
virtual void	addArray (PVTUWriter &writer)=0
	add this field to the given parallel writer
virtual bool	beginWrite (VTUWriter &writer, std::size_t nitems)=0
	start writing with the given writer
virtual void	write (const Cell &, const Domain &)
	write at the given position
virtual void	write (const Cell &cell, unsigned cornerIndex)
	write at the given corner
virtual void	endWrite ()=0
	signal end of writing
virtual	~FunctionWriterBase ()
	destructor

Detailed Description

template<typename Cell_>
class Dune::VTK::FunctionWriterBase< Cell_ >

Base class for function writers.

Member Typedef Documentation

Cell

template<typename Cell_ >

typedef Cell_ Dune::VTK::FunctionWriterBase< Cell_ >::Cell

Domain

template<typename Cell_ >

typedef FieldVector<DF, mydim> Dune::VTK::FunctionWriterBase< Cell_ >::Domain

Constructor & Destructor Documentation

~FunctionWriterBase()

template<typename Cell_ >

virtual Dune::VTK::FunctionWriterBase< Cell_ >::~FunctionWriterBase ( )

inlinevirtual

destructor

Member Function Documentation

addArray()

template<typename Cell_ >

virtual void Dune::VTK::FunctionWriterBase< Cell_ >::addArray ( PVTUWriter &  writer )

pure virtual

add this field to the given parallel writer

Implemented in Dune::VTK::VTKFunctionWriter< Func >, Dune::VTK::CoordinatesWriter< Cell >, Dune::VTK::ConformingConnectivityWriter< IteratorFactory >, Dune::VTK::NonConformingConnectivityWriter< Cell >, Dune::VTK::OffsetsWriter< Cell >, Dune::VTK::TypesWriter< Cell >, and Dune::VTK::SkeletonFunctionWriter< Func >.

beginWrite()

template<typename Cell_ >

virtual bool Dune::VTK::FunctionWriterBase< Cell_ >::beginWrite ( VTUWriter &  writer, std::size_t  nitems  )

pure virtual

start writing with the given writer

Implemented in Dune::VTK::VTKFunctionWriter< Func >, Dune::VTK::CoordinatesWriter< Cell >, Dune::VTK::ConformingConnectivityWriter< IteratorFactory >, Dune::VTK::NonConformingConnectivityWriter< Cell >, Dune::VTK::OffsetsWriter< Cell >, Dune::VTK::TypesWriter< Cell >, and Dune::VTK::SkeletonFunctionWriter< Func >.

endWrite()

template<typename Cell_ >

virtual void Dune::VTK::FunctionWriterBase< Cell_ >::endWrite ( )

pure virtual

signal end of writing

Implemented in Dune::VTK::VTKFunctionWriter< Func >, Dune::VTK::CoordinatesWriter< Cell >, Dune::VTK::ConformingConnectivityWriter< IteratorFactory >, Dune::VTK::NonConformingConnectivityWriter< Cell >, Dune::VTK::OffsetsWriter< Cell >, Dune::VTK::TypesWriter< Cell >, and Dune::VTK::SkeletonFunctionWriter< Func >.

name()

template<typename Cell_ >

virtual std::string Dune::VTK::FunctionWriterBase< Cell_ >::name ( ) const

pure virtual

return name

Implemented in Dune::VTK::VTKFunctionWriter< Func >, Dune::VTK::CoordinatesWriter< Cell >, Dune::VTK::ConformingConnectivityWriter< IteratorFactory >, Dune::VTK::NonConformingConnectivityWriter< Cell >, Dune::VTK::OffsetsWriter< Cell >, Dune::VTK::TypesWriter< Cell >, and Dune::VTK::SkeletonFunctionWriter< Func >.

ncomps()

template<typename Cell_ >

virtual unsigned Dune::VTK::FunctionWriterBase< Cell_ >::ncomps ( ) const

pure virtual

return number of components of the vector

Implemented in Dune::VTK::VTKFunctionWriter< Func >, Dune::VTK::CoordinatesWriter< Cell >, Dune::VTK::ConformingConnectivityWriter< IteratorFactory >, Dune::VTK::NonConformingConnectivityWriter< Cell >, Dune::VTK::OffsetsWriter< Cell >, Dune::VTK::TypesWriter< Cell >, and Dune::VTK::SkeletonFunctionWriter< Func >.

write() [1/2]

template<typename Cell_ >

virtual void Dune::VTK::FunctionWriterBase< Cell_ >::write ( const Cell &  , const Domain &    )

inlinevirtual

write at the given position

This is the default dummy implementation. This method is not abstract so derived classes don't have to override it if they don't need it.

write() [2/2]

template<typename Cell_ >

virtual void Dune::VTK::FunctionWriterBase< Cell_ >::write ( const Cell &  cell, unsigned  cornerIndex  )

inlinevirtual

write at the given corner

This default method forwards the writing to write(const Cell&, const Domain&).

Reimplemented in Dune::VTK::NonConformingConnectivityWriter< Cell >.

---

The documentation for this class was generated from the following file:

• functionwriter.hh
