iterate over the GridViews boundary intersections More...
#include <dune/grid/io/file/vtk/boundaryiterators.hh>

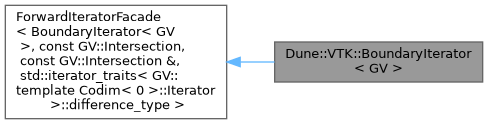

Inheritance diagram for Dune::VTK::BoundaryIterator< GV >:
Public Types | |
| typedef BoundaryIterator< GV > | DerivedType |
| typedef const GV::Intersection | Value |
| typedef Value & | Reference |
| typedef GV::template Codim< 0 >::Iterator | ElementIterator |
| typedef GV::IntersectionIterator | IntersectionIterator |
| typedef std::iterator_traits< ElementIterator >::difference_type | DifferenceType |
Public Member Functions | |
| Reference | dereference () const |
| bool | equals (const DerivedType &other) const |
| void | increment () |
| BoundaryIterator (const GV &gv_, const ElementIterator &eit_, const IntersectionIterator &iit_) | |
| construct a BoundaryIterator | |
| BoundaryIterator (const GV &gv_, const ElementIterator &eit_) | |
| construct a BoundaryIterator | |
| BoundaryIterator (const GV &gv_, bool end=false) | |
| construct a BoundaryIterator | |
Detailed Description
template<typename GV>
class Dune::VTK::BoundaryIterator< GV >
class Dune::VTK::BoundaryIterator< GV >
iterate over the GridViews boundary intersections
This will visit all intersections for which boundary() is true and neighbor() is false.
Member Typedef Documentation
◆ DerivedType
template<typename GV >
| typedef BoundaryIterator<GV> Dune::VTK::BoundaryIterator< GV >::DerivedType |
◆ DifferenceType
template<typename GV >
| typedef std::iterator_traits<ElementIterator>::difference_type Dune::VTK::BoundaryIterator< GV >::DifferenceType |
◆ ElementIterator
template<typename GV >
| typedef GV::template Codim<0>::Iterator Dune::VTK::BoundaryIterator< GV >::ElementIterator |
◆ IntersectionIterator
template<typename GV >
| typedef GV::IntersectionIterator Dune::VTK::BoundaryIterator< GV >::IntersectionIterator |
◆ Reference
template<typename GV >
| typedef Value& Dune::VTK::BoundaryIterator< GV >::Reference |
◆ Value
template<typename GV >
| typedef const GV::Intersection Dune::VTK::BoundaryIterator< GV >::Value |
Constructor & Destructor Documentation
◆ BoundaryIterator() [1/3]
template<typename GV >
|
inline |
construct a BoundaryIterator
The iterator will initially point to the intersection iit_. If that intersection is not valid, it will advance to the first valid one.
◆ BoundaryIterator() [2/3]
template<typename GV >
|
inline |
construct a BoundaryIterator
The iterator will initially point to eit_'s first intersection. If that intersection is not valid, it will advance to the first valid one.
◆ BoundaryIterator() [3/3]
template<typename GV >
|
inline |
construct a BoundaryIterator
If end == true, construct an end iterator for the given gridview. Otherwise, construct a begin iterator.
Member Function Documentation
◆ dereference()
template<typename GV >
|
inline |
◆ equals()
template<typename GV >
|
inline |
◆ increment()
template<typename GV >
|
inline |
The documentation for this class was generated from the following file:
