Dune::DiscreteCoordFunctionInterface< ct, dimR, Impl > Class Template Reference

Interface class for using a discrete function to define the geometry of a Dune::GeometryGrid. An implementation should be derived from Dune::DiscreteCoordinateFunction and the evaluate method taking an entity of the host grid together with the number of a vertex returns the coordinate in of that corner. The user must ensure continuity of this mapping. In addition an adapt method is provided which is called whenever adapt() is called on the Dune::GeometryGrid. More...

#include <dune/grid/geometrygrid/coordfunction.hh>

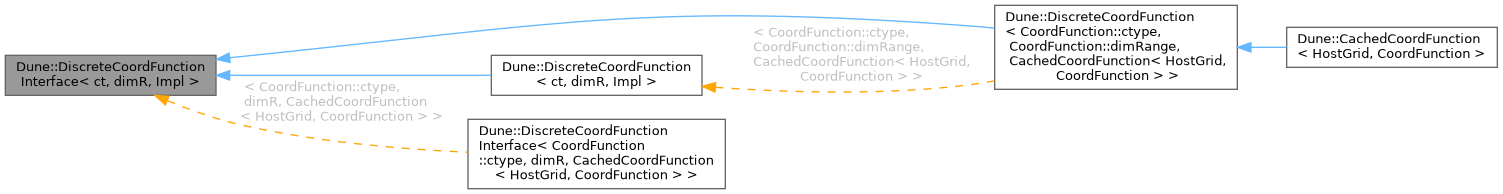

Inheritance diagram for Dune::DiscreteCoordFunctionInterface< ct, dimR, Impl >:

Public Types
typedef This	Interface
typedef Impl	Implementation
typedef ct	ctype
	field type of the coordinate vector
typedef FieldVector< ctype, dimRange >	RangeVector
	range vector for the evaluate method

Public Member Functions
template<class HostEntity >
void	evaluate (const HostEntity &hostEntity, unsigned int corner, RangeVector &y) const
	evaluate method
void	adapt ()
	method called from grid.adapt() method to allow adaptation of the discrete coordinate function

Static Public Attributes
static const unsigned int	dimRange = dimR
	dimension of the range vector

Protected Member Functions
const Implementation &	asImp () const
Implementation &	asImp ()

Detailed Description

template<class ct, unsigned int dimR, class Impl>
class Dune::DiscreteCoordFunctionInterface< ct, dimR, Impl >

Interface class for using a discrete function to define the geometry of a Dune::GeometryGrid. An implementation should be derived from Dune::DiscreteCoordinateFunction and the evaluate method taking an entity of the host grid together with the number of a vertex returns the coordinate in of that corner. The user must ensure continuity of this mapping. In addition an adapt method is provided which is called whenever adapt() is called on the Dune::GeometryGrid.

Template Parameters

ct	coordinate field type (ct in Dune::GeometryGrid)
dimR	dimension of the range of the mapping (dimensionworld in Dune::GeometryGrid)
Impl	implementation class (BN trick)

Member Typedef Documentation

ctype

template<class ct , unsigned int dimR, class Impl >

typedef ct Dune::DiscreteCoordFunctionInterface< ct, dimR, Impl >::ctype

field type of the coordinate vector

Implementation

template<class ct , unsigned int dimR, class Impl >

typedef Impl Dune::DiscreteCoordFunctionInterface< ct, dimR, Impl >::Implementation

Interface

template<class ct , unsigned int dimR, class Impl >

typedef This Dune::DiscreteCoordFunctionInterface< ct, dimR, Impl >::Interface

RangeVector

template<class ct , unsigned int dimR, class Impl >

typedef FieldVector< ctype, dimRange > Dune::DiscreteCoordFunctionInterface< ct, dimR, Impl >::RangeVector

range vector for the evaluate method

Member Function Documentation

adapt()

template<class ct , unsigned int dimR, class Impl >

void Dune::DiscreteCoordFunctionInterface< ct, dimR, Impl >::adapt ( )

inline

method called from grid.adapt() method to allow adaptation of the discrete coordinate function

asImp() [1/2]

template<class ct , unsigned int dimR, class Impl >

Implementation & Dune::DiscreteCoordFunctionInterface< ct, dimR, Impl >::asImp ( )

inlineprotected

asImp() [2/2]

template<class ct , unsigned int dimR, class Impl >

const Implementation & Dune::DiscreteCoordFunctionInterface< ct, dimR, Impl >::asImp ( ) const

inlineprotected

evaluate()

template<class ct , unsigned int dimR, class Impl >

template<class HostEntity >

void Dune::DiscreteCoordFunctionInterface< ct, dimR, Impl >::evaluate ( const HostEntity &  hostEntity, unsigned int  corner, RangeVector &  y  ) const

inline

evaluate method

Parameters

hostEntity	an entity of the host grid
corner	the local number of the corner in the host entity
y	return value for the coordinate of this corner

Note

This method needs to work for entities of all codimensions, not just for elements!

Member Data Documentation

dimRange

template<class ct , unsigned int dimR, class Impl >

const unsigned int Dune::DiscreteCoordFunctionInterface< ct, dimR, Impl >::dimRange = dimR

static

dimension of the range vector

---

The documentation for this class was generated from the following file:

• coordfunction.hh
