Dune::AnalyticalCoordFunctionInterface< ct, dimD, dimR, Impl > Class Template Reference

Interface class for using an analytical function to define the geometry of a Dune::GeometryGrid. An implementation should be derived from Dune::AnalyticalCoordFunction and the evaluate method mapping has to be supplied. More...

#include <dune/grid/geometrygrid/coordfunction.hh>

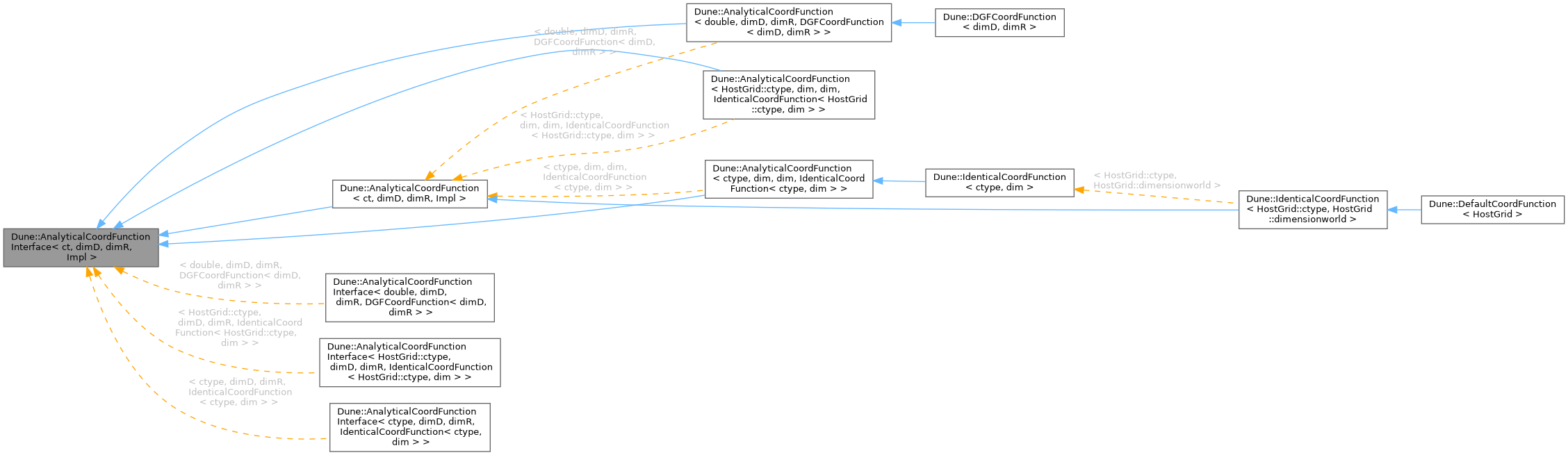

Inheritance diagram for Dune::AnalyticalCoordFunctionInterface< ct, dimD, dimR, Impl >:

Public Types
typedef This	Interface
typedef Impl	Implementation
typedef ct	ctype
	field type of the coordinate vector
typedef FieldVector< ctype, dimDomain >	DomainVector
	domain vector for the evaluate method
typedef FieldVector< ctype, dimRange >	RangeVector
	range vector for the evaluate method

Public Member Functions
void	evaluate (const DomainVector &x, RangeVector &y) const
	evaluate method for global mapping

Static Public Attributes
static const unsigned int	dimDomain = dimD
	dimension of the range vector (dimensionworld of host grid)
static const unsigned int	dimRange = dimR
	dimension of the range vector

Protected Member Functions
const Implementation &	asImp () const
Implementation &	asImp ()

Detailed Description

template<class ct, unsigned int dimD, unsigned int dimR, class Impl>
class Dune::AnalyticalCoordFunctionInterface< ct, dimD, dimR, Impl >

Interface class for using an analytical function to define the geometry of a Dune::GeometryGrid. An implementation should be derived from Dune::AnalyticalCoordFunction and the evaluate method mapping has to be supplied.

Template Parameters

ct	coordinate field type (ct in Dune::GeometryGrid)
dimD	dimension of the domain of the mapping (dimension in the host grid).
dimR	dimension of the range of the mapping (dimensionworld in Dune::GeometryGrid)
Impl	implementation class (BN trick)

Member Typedef Documentation

ctype

template<class ct , unsigned int dimD, unsigned int dimR, class Impl >

typedef ct Dune::AnalyticalCoordFunctionInterface< ct, dimD, dimR, Impl >::ctype

field type of the coordinate vector

DomainVector

template<class ct , unsigned int dimD, unsigned int dimR, class Impl >

typedef FieldVector< ctype, dimDomain > Dune::AnalyticalCoordFunctionInterface< ct, dimD, dimR, Impl >::DomainVector

domain vector for the evaluate method

Implementation

template<class ct , unsigned int dimD, unsigned int dimR, class Impl >

typedef Impl Dune::AnalyticalCoordFunctionInterface< ct, dimD, dimR, Impl >::Implementation

Interface

template<class ct , unsigned int dimD, unsigned int dimR, class Impl >

typedef This Dune::AnalyticalCoordFunctionInterface< ct, dimD, dimR, Impl >::Interface

RangeVector

template<class ct , unsigned int dimD, unsigned int dimR, class Impl >

typedef FieldVector< ctype, dimRange > Dune::AnalyticalCoordFunctionInterface< ct, dimD, dimR, Impl >::RangeVector

range vector for the evaluate method

Member Function Documentation

asImp() [1/2]

template<class ct , unsigned int dimD, unsigned int dimR, class Impl >

Implementation & Dune::AnalyticalCoordFunctionInterface< ct, dimD, dimR, Impl >::asImp ( )

inlineprotected

asImp() [2/2]

template<class ct , unsigned int dimD, unsigned int dimR, class Impl >

const Implementation & Dune::AnalyticalCoordFunctionInterface< ct, dimD, dimR, Impl >::asImp ( ) const

inlineprotected

evaluate()

template<class ct , unsigned int dimD, unsigned int dimR, class Impl >

void Dune::AnalyticalCoordFunctionInterface< ct, dimD, dimR, Impl >::evaluate	(	const DomainVector &	x,
		RangeVector &	y
	)		const

evaluate method for global mapping

Member Data Documentation

dimDomain

template<class ct , unsigned int dimD, unsigned int dimR, class Impl >

const unsigned int Dune::AnalyticalCoordFunctionInterface< ct, dimD, dimR, Impl >::dimDomain = dimD

static

dimension of the range vector (dimensionworld of host grid)

dimRange

template<class ct , unsigned int dimD, unsigned int dimR, class Impl >

const unsigned int Dune::AnalyticalCoordFunctionInterface< ct, dimD, dimR, Impl >::dimRange = dimR

static

dimension of the range vector

---

The documentation for this class was generated from the following file:

• coordfunction.hh
