#include <dune/grid/albertagrid/indexsets.hh>

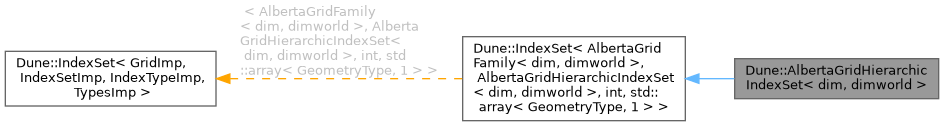

Inheritance diagram for Dune::AlbertaGridHierarchicIndexSet< dim, dimworld >:

Classes
class	InitEntityNumber

Public Types
typedef AlbertaGrid< dim, dimworld >	Grid

typedef AlbertaGridFamily< dim, dimworld >	GridFamily

typedef Base::IndexType	IndexType

typedef Base::Types	Types

typedef Alberta::ElementInfo< dimension >	ElementInfo

typedef Alberta::HierarchyDofNumbering< dimension >	DofNumbering

typedef Alberta::IndexStack	IndexStack

Public Member Functions
template<class Entity >
bool	contains (const Entity &) const
	return true if entity is contained in set

template<int cc>
IndexType	index (const typename Traits::template Codim< cc >::Entity &entity) const
	return hierarchic index of given entity

template<int cc>
IndexType	subIndex (const typename Traits::template Codim< cc >::Entity &entity, int i, unsigned int codim) const
	return subIndex of given enitiy's sub entity

std::size_t	size (const GeometryType &type) const
	return size of set for given GeometryType

std::size_t	size (int codim) const
	return size of set

Types	types (int codim) const
	obtain all geometry types of entities in domain

IndexType	subIndex (const ElementInfo &elementInfo, int i, unsigned int codim) const

IndexType	subIndex (const Alberta::Element *element, int i, unsigned int codim) const
	obtain hierarchic subindex

void	preAdapt ()

void	postAdapt ()

void	create ()

void	read (const std::string &filename)

bool	write (const std::string &filename) const

void	release ()

Index access from entity
IndexType	index (const Entity &e) const
	Map entity to index. Easier to use than the above because codimension template parameter need not be supplied explicitly. The result of calling this method with an entity that is not in the index set is undefined.

IndexType	subIndex (const Entity &e, int i, unsigned int codim) const
	Map a subentity to an index.

Access to entity set
auto	size (GeometryType type) const
	Return total number of entities of given geometry type in entity set .

Static Public Attributes
static const int	dimension = GridFamily::dimension

Member Typedef Documentation

◆ DofNumbering

template<int dim, int dimworld>

typedef Alberta::HierarchyDofNumbering< dimension > Dune::AlbertaGridHierarchicIndexSet< dim, dimworld >::DofNumbering

◆ ElementInfo

template<int dim, int dimworld>

typedef Alberta::ElementInfo< dimension > Dune::AlbertaGridHierarchicIndexSet< dim, dimworld >::ElementInfo

◆ Grid

template<int dim, int dimworld>

typedef AlbertaGrid< dim, dimworld > Dune::AlbertaGridHierarchicIndexSet< dim, dimworld >::Grid

◆ GridFamily

template<int dim, int dimworld>

typedef AlbertaGridFamily< dim, dimworld > Dune::AlbertaGridHierarchicIndexSet< dim, dimworld >::GridFamily

◆ IndexStack

template<int dim, int dimworld>

typedef Alberta::IndexStack Dune::AlbertaGridHierarchicIndexSet< dim, dimworld >::IndexStack

◆ IndexType

template<int dim, int dimworld>

typedef Base::IndexType Dune::AlbertaGridHierarchicIndexSet< dim, dimworld >::IndexType

◆ Types

template<int dim, int dimworld>

typedef Base::Types Dune::AlbertaGridHierarchicIndexSet< dim, dimworld >::Types

Member Function Documentation

◆ contains()

template<int dim, int dimworld>

template<class Entity >

bool Dune::AlbertaGridHierarchicIndexSet< dim, dimworld >::contains ( const Entity & ) const

inline

return true if entity is contained in set

◆ create()

template<int dim, int dimworld>

void Dune::AlbertaGridHierarchicIndexSet< dim, dimworld >::create ( )

◆ index() [1/2]

IndexType Dune::IndexSet< AlbertaGridFamily< dim, dimworld > , AlbertaGridHierarchicIndexSet< dim, dimworld > , int , std::array< GeometryType, 1 > >::index ( const Entity & e ) const

inlineinherited

Map entity to index. Easier to use than the above because codimension template parameter need not be supplied explicitly. The result of calling this method with an entity that is not in the index set is undefined.

Parameters

e	Reference to codim cc entity. Since entity knows its codimension, automatic extraction is possible.

Returns: An index in the range 0 ... Max number of entities in set - 1.

◆ index() [2/2]

template<int dim, int dimworld>

template<int cc>

IndexType Dune::AlbertaGridHierarchicIndexSet< dim, dimworld >::index ( const typename Traits::template Codim< cc >::Entity & entity ) const

inline

return hierarchic index of given entity

◆ postAdapt()

template<int dim, int dimworld>

void Dune::AlbertaGridHierarchicIndexSet< dim, dimworld >::postAdapt ( )

inline

◆ preAdapt()

template<int dim, int dimworld>

void Dune::AlbertaGridHierarchicIndexSet< dim, dimworld >::preAdapt ( )

inline

◆ read()

template<int dim, int dimworld>

void Dune::AlbertaGridHierarchicIndexSet< dim, dimworld >::read ( const std::string & filename )

◆ release()

template<int dim, int dimworld>

void Dune::AlbertaGridHierarchicIndexSet< dim, dimworld >::release ( )

inline

◆ size() [1/3]

template<int dim, int dimworld>

std::size_t Dune::AlbertaGridHierarchicIndexSet< dim, dimworld >::size ( const GeometryType & type ) const

inline

return size of set for given GeometryType

◆ size() [2/3]

auto Dune::IndexSet< AlbertaGridFamily< dim, dimworld > , AlbertaGridHierarchicIndexSet< dim, dimworld > , int , std::array< GeometryType, 1 > >::size ( GeometryType type ) const

inlineinherited

Return total number of entities of given geometry type in entity set $E$ .

Parameters

[in] type A valid geometry type.

Returns: number of entities (type is auto determined by the implementation. std::size_t is the expected return type).

◆ size() [3/3]

template<int dim, int dimworld>

std::size_t Dune::AlbertaGridHierarchicIndexSet< dim, dimworld >::size ( int codim ) const

inline

return size of set

◆ subIndex() [1/4]

template<int dim, int dimworld>

IndexType Dune::AlbertaGridHierarchicIndexSet< dim, dimworld >::subIndex	(	const Alberta::Element *	element,
		int	i,
		unsigned int	codim
	)		const

inline

obtain hierarchic subindex

Parameters

[in]	element	pointer to ALBERTA element
[in]	i	number of the subelement (in ALBERTA numbering)
[in]	codim	codimension

◆ subIndex() [2/4]

template<int dim, int dimworld>

IndexType Dune::AlbertaGridHierarchicIndexSet< dim, dimworld >::subIndex	(	const ElementInfo &	elementInfo,
		int	i,
		unsigned int	codim
	)		const

inline

◆ subIndex() [3/4]

IndexType Dune::IndexSet< AlbertaGridFamily< dim, dimworld > , AlbertaGridHierarchicIndexSet< dim, dimworld > , int , std::array< GeometryType, 1 > >::subIndex	(	const Entity &	e,
		int	i,
		unsigned int	codim
	)		const

inlineinherited

Map a subentity to an index.

The result of calling this method with an entity that is not in the index set is undefined.

Note: This method exists for convenience only. It extracts the codimension from the type of the entity, which can be guessed by the compiler.

Template Parameters

Entity type of entity (must be GridImp::Codim< cc >::Entity for some cc)

Parameters

[in]	e	reference to entity
[in]	i	number subentity of e within the codimension
[in]	codim	codimension of the subentity we're interested in

Note: The parameter codim denotes the codimension with respect to the grid, i.e., it must satisfy cc <= codim <= dimension.

Returns: An index in the range 0 ... Max number of entities in set - 1.

◆ subIndex() [4/4]

template<int dim, int dimworld>

template<int cc>

IndexType Dune::AlbertaGridHierarchicIndexSet< dim, dimworld >::subIndex	(	const typename Traits::template Codim< cc >::Entity &	entity,
		int	i,
		unsigned int	codim
	)		const

inline

return subIndex of given enitiy's sub entity

◆ types()

template<int dim, int dimworld>

Types Dune::AlbertaGridHierarchicIndexSet< dim, dimworld >::types ( int codim ) const

inline

obtain all geometry types of entities in domain

◆ write()

template<int dim, int dimworld>

bool Dune::AlbertaGridHierarchicIndexSet< dim, dimworld >::write ( const std::string & filename ) const

Member Data Documentation

◆ dimension

template<int dim, int dimworld>

const int Dune::AlbertaGridHierarchicIndexSet< dim, dimworld >::dimension = GridFamily::dimension

static

The documentation for this class was generated from the following files:
