#include <Codec.h>

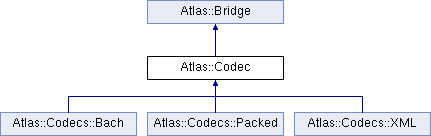

Inheritance diagram for Atlas::Codec:
Public Member Functions | |
| virtual void | poll (bool can_get=true)=0 |
 Public Member Functions inherited from Atlas::Bridge | |
| virtual void | streamBegin ()=0 |
| Begin an Atlas stream. | |
| virtual void | streamMessage ()=0 |
| Start a message in an Atlas stream. | |
| virtual void | streamEnd ()=0 |
| Ends the Atlas stream. | |
| virtual void | mapMapItem (const std::string &name)=0 |
| Starts a map object to the currently streamed map. | |
| virtual void | mapListItem (const std::string &name)=0 |
| Starts a list object to the currently streamed map. | |
| virtual void | mapIntItem (const std::string &name, long)=0 |
| Adds an integer to the currently streames map. | |
| virtual void | mapFloatItem (const std::string &name, double)=0 |
| Adds a float to the currently streamed map. | |
| virtual void | mapStringItem (const std::string &name, const std::string &)=0 |
| Adds a string to the currently streamed map. | |
| virtual void | mapEnd ()=0 |
| Ends the currently streamed map. | |
| virtual void | listMapItem ()=0 |
| Starts a map object in the currently streamed list. | |
| virtual void | listListItem ()=0 |
| Starts a list object in the currently streamed list. | |
| virtual void | listIntItem (long)=0 |
| Adds an integer to the currently streames list. | |
| virtual void | listFloatItem (double)=0 |
| Adds a float to the currently streamed list. | |
| virtual void | listStringItem (const std::string &)=0 |
| Adds a string to the currently streamed list. | |
| virtual void | listEnd ()=0 |
| Ends the currently streamed list. | |
Detailed Description
Atlas stream codec.
This class presents an interface for sending and receiving Atlas messages. Each outgoing message is converted to a byte stream and piped through an optional chain of filters for compression or other transformations, then passed to a socket for transmission. Incoming messages are read from the socket, piped through the filters in the opposite direction and passed to a user specified Bridge callback class.
The documentation for this class was generated from the following files:
