#include <Bridge.h>

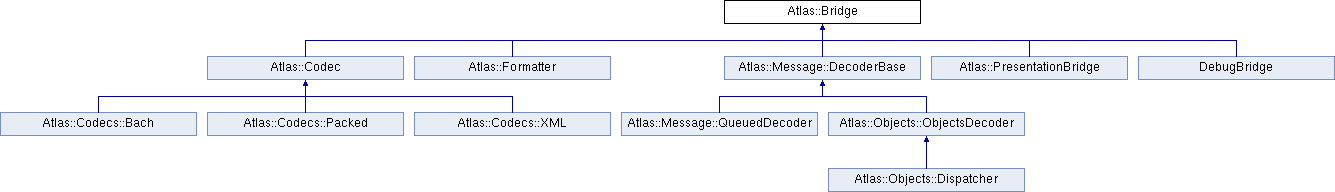

Inheritance diagram for Atlas::Bridge:
Public Member Functions | |
| virtual void | streamBegin ()=0 |
| Begin an Atlas stream. | |
| virtual void | streamMessage ()=0 |
| Start a message in an Atlas stream. | |
| virtual void | streamEnd ()=0 |
| Ends the Atlas stream. | |
| virtual void | mapMapItem (const std::string &name)=0 |
| Starts a map object to the currently streamed map. | |
| virtual void | mapListItem (const std::string &name)=0 |
| Starts a list object to the currently streamed map. | |
| virtual void | mapIntItem (const std::string &name, long)=0 |
| Adds an integer to the currently streames map. | |
| virtual void | mapFloatItem (const std::string &name, double)=0 |
| Adds a float to the currently streamed map. | |
| virtual void | mapStringItem (const std::string &name, const std::string &)=0 |
| Adds a string to the currently streamed map. | |
| virtual void | mapEnd ()=0 |
| Ends the currently streamed map. | |
| virtual void | listMapItem ()=0 |
| Starts a map object in the currently streamed list. | |
| virtual void | listListItem ()=0 |
| Starts a list object in the currently streamed list. | |
| virtual void | listIntItem (long)=0 |
| Adds an integer to the currently streames list. | |
| virtual void | listFloatItem (double)=0 |
| Adds a float to the currently streamed list. | |
| virtual void | listStringItem (const std::string &)=0 |
| Adds a string to the currently streamed list. | |
| virtual void | listEnd ()=0 |
| Ends the currently streamed list. | |
Detailed Description
Atlas stream bridge.
This class presents an interface that accepts an Atlas stream. The stream begins with a call to streamBegin() and finishes with streamEnd(). While the Bridge is in this stream context, a message can be sent using streamMessage(). This puts the Bridge into a map context, allowing various map*Item() calls.
Several classes are derived from Bridge, the most notable of which is Codec, which accepts an Atlas stream for encoding and transmission.
- See also
- Codec
The documentation for this class was generated from the following file:
