Template class to rotate monochrome images (on pixel data level). More...

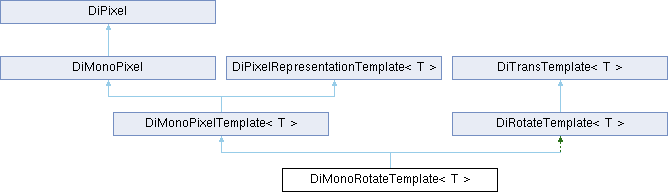

Inheritance diagram for DiMonoRotateTemplate< T >:

Public Member Functions
	DiMonoRotateTemplate (const DiMonoPixel *pixel, const Uint16 src_cols, const Uint16 src_rows, const Uint16 dest_cols, const Uint16 dest_rows, const Uint32 frames, const int degree)
	constructor

	~DiMonoRotateTemplate ()
	destructor

Public Member Functions inherited from DiMonoPixelTemplate< T >
	DiMonoPixelTemplate (const unsigned long count)
	constructor

	DiMonoPixelTemplate (const DiInputPixel pixel, DiMonoModality modality)
	constructor

	DiMonoPixelTemplate (DiMonoOutputPixel pixel, DiMonoModality modality)
	constructor

virtual	~DiMonoPixelTemplate ()
	destructor

EP_Representation	getRepresentation () const
	get integer representation

const void *	getData () const
	get pointer to internal pixel data

void *	getDataPtr ()
	get pointer to internal pixel data

void *	getDataArrayPtr ()
	get reference to pointer to internal pixel data.

int	getMinMaxValues (double &min, double &max) const
	get minimum and maximum pixel values

int	getMinMaxWindow (const int idx, double &center, double &width)
	get automatically computed min-max window

virtual int	getRoiWindow (const unsigned long left_pos, const unsigned long top_pos, const unsigned long width, const unsigned long height, const unsigned long columns, const unsigned long rows, const unsigned long frame, double &voiCenter, double &voiWidth)
	get automatically computed Region of Interest (ROI) window

int	getHistogramWindow (const double thresh, double &center, double &width)
	get automatically computed histogram window

Public Member Functions inherited from DiMonoPixel
	DiMonoPixel (const unsigned long count)
	constructor

	DiMonoPixel (const DiInputPixel pixel, DiMonoModality modality)
	constructor

	DiMonoPixel (DiMonoOutputPixel pixel, DiMonoModality modality)
	constructor

virtual	~DiMonoPixel ()
	destructor

int	getPlanes () const
	get number of planes

unsigned int	getBits () const
	get number of bits per pixel

double	getAbsMinimum () const
	get absolute minimum pixel value.

double	getAbsMaximum () const
	get absolute maximum pixel value.

double	getAbsMaxRange () const
	get absolute pixel range

const char *	getModalityLutExplanation () const
	get modality LUT explanation string

DiMonoModality *	addReferenceToModality ()
	add a reference to the internally managed modality transform object

int	isPotentiallySigned () const
	check whether pixel data is 'potentially' signed.

Public Member Functions inherited from DiPixel
	DiPixel (const unsigned long count, const unsigned long inputCount=0)
	constructor

virtual	~DiPixel ()
	destructor

unsigned long	getCount () const
	get number of pixels

unsigned long	getInputCount () const
	get number of pixels stored in the 'PixelData' element

Public Member Functions inherited from DiPixelRepresentationTemplate< T >
	DiPixelRepresentationTemplate ()
	default constructor

virtual	~DiPixelRepresentationTemplate ()
	destructor

int	isSigned () const
	check whether template type T is signed or not

Private Member Functions
void	rotate (const T *pixel, const int degree)
	rotate pixel data

Additional Inherited Members
Protected Member Functions inherited from DiMonoPixelTemplate< T >
	DiMonoPixelTemplate (const DiPixel pixel, DiMonoModality modality)
	constructor

	DiMonoPixelTemplate (const DiMonoPixel *pixel, const unsigned long count)
	constructor

void	determineMinMax (T minvalue=0, T maxvalue=0, const int mode=0x1)
	determine minimum and maximum pixel values

Protected Member Functions inherited from DiMonoPixel
	DiMonoPixel (const DiPixel pixel, DiMonoModality modality)
	constructor

	DiMonoPixel (const DiMonoPixel *pixel, const unsigned long count)
	constructor

Protected Member Functions inherited from DiRotateTemplate< T >
void	rotateLeft (const T src[], T dest[])
	rotate source image left and store result in destination image

void	rotateRight (const T src[], T dest[])
	rotate source image right and store result in destination image

void	rotateTopDown (const T src[], T dest[])
	rotate source image top-down and store result in destination image

	DiRotateTemplate (DiPixel *pixel, const Uint16 src_cols, const Uint16 src_rows, const Uint16 dest_cols, const Uint16 dest_rows, const Uint32 frames, const int degree)
	constructor.

	DiRotateTemplate (const int planes, const Uint16 src_cols, const Uint16 src_rows, const Uint16 dest_cols, const Uint16 dest_rows, const Uint32 frames)
	constructor.

virtual	~DiRotateTemplate ()
	destructor

void	rotateData (const T src[], T dest[], const int degree)
	choose algorithm depending on rotation angle

Protected Member Functions inherited from DiTransTemplate< T >
	DiTransTemplate (const int planes, const Uint16 src_x, const Uint16 src_y, const Uint16 dest_x, const Uint16 dest_y, const Uint32 frames, const int bits=0)
	constructor

virtual	~DiTransTemplate ()
	destructor

void	copyPixel (const T src[], T dest[])
	copy pixel data

void	fillPixel (T *dest[], const T value)
	fill pixel data with specified value

void	clearPixel (T *dest[])
	clear pixel data (set values to 0)

Protected Attributes inherited from DiMonoPixelTemplate< T >
T *	Data
	pointer to pixel data

Protected Attributes inherited from DiMonoPixel
DiMonoModality *	Modality
	pointer to modality transform object

Protected Attributes inherited from DiPixel
unsigned long	Count
	number of pixels

unsigned long	InputCount
	number of pixels in the input buffer

Protected Attributes inherited from DiTransTemplate< T >
int	Planes
	number of planes

Uint16	Src_X
	width of source image

Uint16	Src_Y
	height of source image

const Uint16	Dest_X
	width of destination image

const Uint16	Dest_Y
	height of destination image

const Uint32	Frames
	number of frames

const int	Bits
	number of bits per plane/pixel

Detailed Description

template<class T>
class DiMonoRotateTemplate< T >

Template class to rotate monochrome images (on pixel data level).

by steps of 90 degrees

Constructor & Destructor Documentation

◆ DiMonoRotateTemplate()

template<class T >

DiMonoRotateTemplate< T >::DiMonoRotateTemplate	(	const DiMonoPixel *	pixel,
		const Uint16	src_cols,
		const Uint16	src_rows,
		const Uint16	dest_cols,
		const Uint16	dest_rows,
		const Uint32	frames,
		const int	degree
	)

inline

constructor

Parameters

pixel	pointer to intermediate pixel representation
src_cols	width of clipping area
src_rows	height of clipping area
dest_cols	width of destination image (scaled image)
dest_rows	height of destination image
frames	number of frames
degree	angle by which the pixel data should be rotated

References DiPixel::getCount(), DiPixel::getData(), and DiMonoRotateTemplate< T >::rotate().

Member Function Documentation

◆ rotate()

template<class T >

void DiMonoRotateTemplate< T >::rotate	(	const T *	pixel,
		const int	degree
	)

inlineprivate

rotate pixel data

Parameters

pixel	pointer to pixel data to be rotated
degree	angle by which the pixel data should be rotated

References DiMonoPixelTemplate< T >::Data, DiPixel::getCount(), DiRotateTemplate< T >::rotateLeft(), DiRotateTemplate< T >::rotateRight(), and DiRotateTemplate< T >::rotateTopDown().

Referenced by DiMonoRotateTemplate< T >::DiMonoRotateTemplate().

The documentation for this class was generated from the following file:

dcmimgle/include/dcmtk/dcmimgle/dimorot.h
