Template class to handle monochrome pixel data. More...

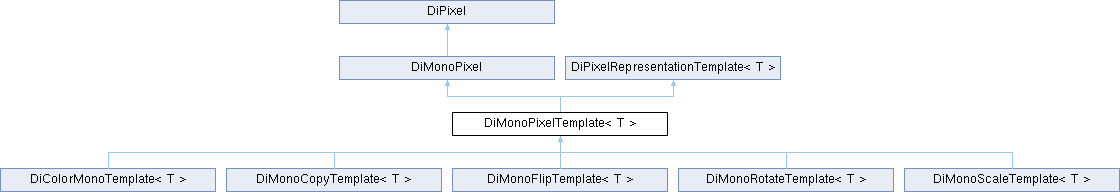

Inheritance diagram for DiMonoPixelTemplate< T >:

Public Member Functions
	DiMonoPixelTemplate (const unsigned long count)
	constructor

	DiMonoPixelTemplate (const DiInputPixel pixel, DiMonoModality modality)
	constructor

	DiMonoPixelTemplate (DiMonoOutputPixel pixel, DiMonoModality modality)
	constructor

virtual	~DiMonoPixelTemplate ()
	destructor

EP_Representation	getRepresentation () const
	get integer representation

const void *	getData () const
	get pointer to internal pixel data

void *	getDataPtr ()
	get pointer to internal pixel data

void *	getDataArrayPtr ()
	get reference to pointer to internal pixel data.

int	getMinMaxValues (double &min, double &max) const
	get minimum and maximum pixel values

int	getMinMaxWindow (const int idx, double &center, double &width)
	get automatically computed min-max window

virtual int	getRoiWindow (const unsigned long left_pos, const unsigned long top_pos, const unsigned long width, const unsigned long height, const unsigned long columns, const unsigned long rows, const unsigned long frame, double &voiCenter, double &voiWidth)
	get automatically computed Region of Interest (ROI) window

int	getHistogramWindow (const double thresh, double &center, double &width)
	get automatically computed histogram window

Public Member Functions inherited from DiMonoPixel
	DiMonoPixel (const unsigned long count)
	constructor

	DiMonoPixel (const DiInputPixel pixel, DiMonoModality modality)
	constructor

	DiMonoPixel (DiMonoOutputPixel pixel, DiMonoModality modality)
	constructor

virtual	~DiMonoPixel ()
	destructor

int	getPlanes () const
	get number of planes

unsigned int	getBits () const
	get number of bits per pixel

double	getAbsMinimum () const
	get absolute minimum pixel value.

double	getAbsMaximum () const
	get absolute maximum pixel value.

double	getAbsMaxRange () const
	get absolute pixel range

const char *	getModalityLutExplanation () const
	get modality LUT explanation string

DiMonoModality *	addReferenceToModality ()
	add a reference to the internally managed modality transform object

int	isPotentiallySigned () const
	check whether pixel data is 'potentially' signed.

Public Member Functions inherited from DiPixel
	DiPixel (const unsigned long count, const unsigned long inputCount=0)
	constructor

virtual	~DiPixel ()
	destructor

unsigned long	getCount () const
	get number of pixels

unsigned long	getInputCount () const
	get number of pixels stored in the 'PixelData' element

Public Member Functions inherited from DiPixelRepresentationTemplate< T >
	DiPixelRepresentationTemplate ()
	default constructor

virtual	~DiPixelRepresentationTemplate ()
	destructor

int	isSigned () const
	check whether template type T is signed or not

Protected Member Functions
	DiMonoPixelTemplate (const DiPixel pixel, DiMonoModality modality)
	constructor

	DiMonoPixelTemplate (const DiMonoPixel *pixel, const unsigned long count)
	constructor

void	determineMinMax (T minvalue=0, T maxvalue=0, const int mode=0x1)
	determine minimum and maximum pixel values

Protected Member Functions inherited from DiMonoPixel
	DiMonoPixel (const DiPixel pixel, DiMonoModality modality)
	constructor

	DiMonoPixel (const DiMonoPixel *pixel, const unsigned long count)
	constructor

Protected Attributes
T *	Data
	pointer to pixel data

Protected Attributes inherited from DiMonoPixel
DiMonoModality *	Modality
	pointer to modality transform object

Protected Attributes inherited from DiPixel
unsigned long	Count
	number of pixels

unsigned long	InputCount
	number of pixels in the input buffer

Private Attributes
T	MinValue [2]
	minimum pixel values (0 = global, 1 = ignoring global)

T	MaxValue [2]
	maximum pixel values

Detailed Description

template<class T>
class DiMonoPixelTemplate< T >

Template class to handle monochrome pixel data.

Constructor & Destructor Documentation

◆ DiMonoPixelTemplate() [1/5]

template<class T >

DiMonoPixelTemplate< T >::DiMonoPixelTemplate ( const unsigned long count )

inline

constructor

Parameters

count number of pixels

References DiPixel::Count, DiMonoPixelTemplate< T >::Data, DiMonoPixelTemplate< T >::MaxValue, and DiMonoPixelTemplate< T >::MinValue.

◆ DiMonoPixelTemplate() [2/5]

template<class T >

DiMonoPixelTemplate< T >::DiMonoPixelTemplate	(	const DiInputPixel *	pixel,
		DiMonoModality *	modality
	)

inline

constructor

Parameters

pixel	pointer to input pixel data
modality	pointer to object managing modality transform

References DiMonoPixelTemplate< T >::MaxValue, and DiMonoPixelTemplate< T >::MinValue.

◆ DiMonoPixelTemplate() [3/5]

template<class T >

DiMonoPixelTemplate< T >::DiMonoPixelTemplate	(	DiMonoOutputPixel *	pixel,
		DiMonoModality *	modality
	)

inline

constructor

Parameters

pixel	pointer to output pixel data used for intermediate representation
modality	pointer to object managing modality transform

References DiMonoPixelTemplate< T >::MaxValue, and DiMonoPixelTemplate< T >::MinValue.

◆ DiMonoPixelTemplate() [4/5]

template<class T >

DiMonoPixelTemplate< T >::DiMonoPixelTemplate	(	const DiPixel *	pixel,
		DiMonoModality *	modality
	)

inlineprotected

constructor

Parameters

pixel	pointer to intermediate pixel data (not necessarily monochrome)
modality	pointer to object managing modality transform

References DiMonoPixelTemplate< T >::MaxValue, and DiMonoPixelTemplate< T >::MinValue.

◆ DiMonoPixelTemplate() [5/5]

template<class T >

DiMonoPixelTemplate< T >::DiMonoPixelTemplate	(	const DiMonoPixel *	pixel,
		const unsigned long	count
	)

inlineprotected

constructor

Parameters

pixel	pointer to intermediate monochrome pixel data
count	number of pixels

References DiMonoPixelTemplate< T >::MaxValue, and DiMonoPixelTemplate< T >::MinValue.

Member Function Documentation

◆ determineMinMax()

template<class T >

void DiMonoPixelTemplate< T >::determineMinMax	(	T	minvalue = `0`,
		T	maxvalue = `0`,
		const int	mode = `0x1`
	)

inlineprotected

determine minimum and maximum pixel values

Parameters

minvalue	starting global minimum value (0 = invalid)
maxvalue	starting global maximum value (0 = invalid)
mode	calculate global min/max if 0x1 bit is set (default), calculate next min/max if 0x2 bit is set

References DiPixel::Count, DiMonoPixelTemplate< T >::Data, DiMonoPixelTemplate< T >::MaxValue, and DiMonoPixelTemplate< T >::MinValue.

Referenced by DiColorMonoTemplate< T >::DiColorMonoTemplate(), DiMonoCopyTemplate< T >::DiMonoCopyTemplate(), DiMonoScaleTemplate< T >::DiMonoScaleTemplate(), and DiMonoPixelTemplate< T >::getMinMaxWindow().

◆ getData()

template<class T >

const void * DiMonoPixelTemplate< T >::getData ( ) const

inlinevirtual

get pointer to internal pixel data

Returns: pointer to pixel data

Implements DiPixel.

References DiMonoPixelTemplate< T >::Data.

◆ getDataArrayPtr()

template<class T >

void * DiMonoPixelTemplate< T >::getDataArrayPtr ( )

inlinevirtual

get reference to pointer to internal pixel data.

The returned array points to the (single) image plane. The behaviour of this method is, therefore, identical for both monochrome and color images.

Returns: reference to pointer to pixel data

Implements DiPixel.

References DiMonoPixelTemplate< T >::Data.

◆ getDataPtr()

template<class T >

void * DiMonoPixelTemplate< T >::getDataPtr ( )

inlinevirtual

get pointer to internal pixel data

Returns: pointer to pixel data

Implements DiPixel.

References DiMonoPixelTemplate< T >::Data.

◆ getHistogramWindow()

template<class T >

int DiMonoPixelTemplate< T >::getHistogramWindow	(	const double	thresh,
		double &	center,
		double &	width
	)

inlinevirtual

get automatically computed histogram window

Parameters

thresh	ignore certain percentage of pixels at lower and upper boundaries
center	reference to storage area for window center value
width	reference to storage area for window width value

Returns: status, true if successful, false otherwise

Implements DiMonoPixel.

References DiPixel::Count, DiMonoPixelTemplate< T >::Data, DiMonoPixelTemplate< T >::MaxValue, DiMonoPixelTemplate< T >::MinValue, and OFBitmanipTemplate< T >::zeroMem().

◆ getMinMaxValues()

template<class T >

int DiMonoPixelTemplate< T >::getMinMaxValues	(	double &	min,
		double &	max
	)		const

inlinevirtual

get minimum and maximum pixel values

Parameters

min	reference to storage area for minimum pixel value
max	reference to storage area for maximum pixel value

Returns: status, true if successful, false otherwise

Implements DiMonoPixel.

References DiMonoPixelTemplate< T >::MaxValue, and DiMonoPixelTemplate< T >::MinValue.

◆ getMinMaxWindow()

template<class T >

int DiMonoPixelTemplate< T >::getMinMaxWindow	(	const int	idx,
		double &	center,
		double &	width
	)

inlinevirtual

get automatically computed min-max window

Parameters

idx	ignore global min/max pixel values if > 0
center	reference to storage area for window center value
width	reference to storage area for window width value

Returns: status, true if successful, false otherwise

Implements DiMonoPixel.

References DiMonoPixelTemplate< T >::determineMinMax(), DiMonoPixelTemplate< T >::MaxValue, and DiMonoPixelTemplate< T >::MinValue.

◆ getRepresentation()

template<class T >

EP_Representation DiMonoPixelTemplate< T >::getRepresentation ( ) const

inlinevirtual

get integer representation

Returns: integer representation of the internally stored pixel data

Implements DiPixel.

References DiPixelRepresentationTemplate< T >::getRepresentation().

◆ getRoiWindow()

template<class T >

virtual int DiMonoPixelTemplate< T >::getRoiWindow	(	const unsigned long	left_pos,
		const unsigned long	top_pos,
		const unsigned long	width,
		const unsigned long	height,
		const unsigned long	columns,
		const unsigned long	rows,
		const unsigned long	frame,
		double &	voiCenter,
		double &	voiWidth
	)

inlinevirtual

get automatically computed Region of Interest (ROI) window

Parameters

left_pos	x-coordinate of the top left-hand corner of the ROI (starting from 0)
top_pos	y-coordinate of the top left-hand corner of the ROI (starting from 0)
width	width in pixels of the rectangular ROI (minimum: 1)
height	height in pixels of the rectangular ROI (minimum: 1)
columns	number of columns (width) of the associated image
rows	number of rows (height) of the associated image
frame	index of the frame to be used for the calculation
voiCenter	reference to storage area for window center value
voiWidth	reference to storage area for window width value

Returns: status, true if successful, false otherwise

Implements DiMonoPixel.

References DiMonoPixelTemplate< T >::Data.

The documentation for this class was generated from the following file:

dcmimgle/include/dcmtk/dcmimgle/dimopxt.h
