Template class to convert color image to monochrome images. More...

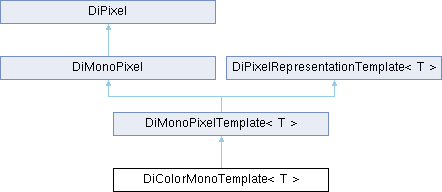

Inheritance diagram for DiColorMonoTemplate< T >:

Public Member Functions
	DiColorMonoTemplate (const DiColorPixel pixel, DiMonoModality modality, const double red, const double green, const double blue)
	constructor

virtual	~DiColorMonoTemplate ()
	destructor

Public Member Functions inherited from DiMonoPixelTemplate< T >
	DiMonoPixelTemplate (const unsigned long count)
	constructor

	DiMonoPixelTemplate (const DiInputPixel pixel, DiMonoModality modality)
	constructor

	DiMonoPixelTemplate (DiMonoOutputPixel pixel, DiMonoModality modality)
	constructor

virtual	~DiMonoPixelTemplate ()
	destructor

EP_Representation	getRepresentation () const
	get integer representation

const void *	getData () const
	get pointer to internal pixel data

void *	getDataPtr ()
	get pointer to internal pixel data

void *	getDataArrayPtr ()
	get reference to pointer to internal pixel data.

int	getMinMaxValues (double &min, double &max) const
	get minimum and maximum pixel values

int	getMinMaxWindow (const int idx, double &center, double &width)
	get automatically computed min-max window

virtual int	getRoiWindow (const unsigned long left_pos, const unsigned long top_pos, const unsigned long width, const unsigned long height, const unsigned long columns, const unsigned long rows, const unsigned long frame, double &voiCenter, double &voiWidth)
	get automatically computed Region of Interest (ROI) window

int	getHistogramWindow (const double thresh, double &center, double &width)
	get automatically computed histogram window

Public Member Functions inherited from DiMonoPixel
	DiMonoPixel (const unsigned long count)
	constructor

	DiMonoPixel (const DiInputPixel pixel, DiMonoModality modality)
	constructor

	DiMonoPixel (DiMonoOutputPixel pixel, DiMonoModality modality)
	constructor

virtual	~DiMonoPixel ()
	destructor

int	getPlanes () const
	get number of planes

unsigned int	getBits () const
	get number of bits per pixel

double	getAbsMinimum () const
	get absolute minimum pixel value.

double	getAbsMaximum () const
	get absolute maximum pixel value.

double	getAbsMaxRange () const
	get absolute pixel range

const char *	getModalityLutExplanation () const
	get modality LUT explanation string

DiMonoModality *	addReferenceToModality ()
	add a reference to the internally managed modality transform object

int	isPotentiallySigned () const
	check whether pixel data is 'potentially' signed.

Public Member Functions inherited from DiPixel
	DiPixel (const unsigned long count, const unsigned long inputCount=0)
	constructor

virtual	~DiPixel ()
	destructor

unsigned long	getCount () const
	get number of pixels

unsigned long	getInputCount () const
	get number of pixels stored in the 'PixelData' element

Public Member Functions inherited from DiPixelRepresentationTemplate< T >
	DiPixelRepresentationTemplate ()
	default constructor

virtual	~DiPixelRepresentationTemplate ()
	destructor

int	isSigned () const
	check whether template type T is signed or not

Private Member Functions
void	convert (const T *pixel[3], const double red, const double green, const double blue)
	convert color pixel data to monochrome format

Additional Inherited Members
Protected Member Functions inherited from DiMonoPixelTemplate< T >
	DiMonoPixelTemplate (const DiPixel pixel, DiMonoModality modality)
	constructor

	DiMonoPixelTemplate (const DiMonoPixel *pixel, const unsigned long count)
	constructor

void	determineMinMax (T minvalue=0, T maxvalue=0, const int mode=0x1)
	determine minimum and maximum pixel values

Protected Member Functions inherited from DiMonoPixel
	DiMonoPixel (const DiPixel pixel, DiMonoModality modality)
	constructor

	DiMonoPixel (const DiMonoPixel *pixel, const unsigned long count)
	constructor

Protected Attributes inherited from DiMonoPixelTemplate< T >
T *	Data
	pointer to pixel data

Protected Attributes inherited from DiMonoPixel
DiMonoModality *	Modality
	pointer to modality transform object

Protected Attributes inherited from DiPixel
unsigned long	Count
	number of pixels

unsigned long	InputCount
	number of pixels in the input buffer

Detailed Description

template<class T>
class DiColorMonoTemplate< T >

Template class to convert color image to monochrome images.

(on pixel data level)

Constructor & Destructor Documentation

◆ DiColorMonoTemplate()

template<class T >

DiColorMonoTemplate< T >::DiColorMonoTemplate	(	const DiColorPixel *	pixel,
		DiMonoModality *	modality,
		const double	red,
		const double	green,
		const double	blue
	)

inline

constructor

Parameters

pixel	intermediate representation of color pixel data
modality	pointer to object managing modality transform
red	coefficient of red pixel component
green	coefficient of green pixel component
blue	coefficient of blue pixel component

References DiColorMonoTemplate< T >::convert(), DiMonoPixelTemplate< T >::determineMinMax(), DiPixel::getCount(), and DiPixel::getData().

Member Function Documentation

◆ convert()

template<class T >

void DiColorMonoTemplate< T >::convert	(	const T *	pixel[3],
		const double	red,
		const double	green,
		const double	blue
	)

inlineprivate

convert color pixel data to monochrome format

Parameters

pixel	intermediate representation of color pixel data
red	coefficient of red pixel component
green	coefficient of green pixel component
blue	coefficient of blue pixel component

References DiPixel::Count, and DiMonoPixelTemplate< T >::Data.

Referenced by DiColorMonoTemplate< T >::DiColorMonoTemplate().

The documentation for this class was generated from the following file:

dcmimage/include/dcmtk/dcmimage/dicomot.h
